Product Details

Description



Features:

• Std., A, and C grades
• Low input and output leakage 1µA (max.)
• CMOS power levels
• True TTL input and output compatibility:
VOH = 3.3V (typ.)
VOL = 0.3V (typ.)
• High Drive outputs (-15mA IOH, 48mA IOL)
• Meets or exceeds JEDEC standard 18 specifications
• Military product compliant to MIL-STD-883, Class B and DESC
listed (dual marked)
• Power off disable outputs permit "live insertion"
• Available in the following packages:
Industrial: SOIC, SSOP, QSOP, TSSOP
Military: CERDIP, LCC



Pinout

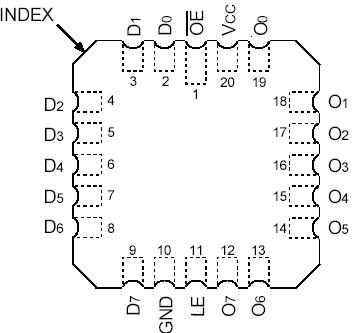

Connection Diagram




Specifications

Symbol

Description

Max

Unit

VTERM(2)

Terminal Voltage with Respect to GND

0.5 to +7

V

VTERM(3)

Terminal Voltage with Respect to GND

0.5 to VCC+0.5

V

TSTG

Storage Temperature

65 to +150

°C

IOUT

DC Output Current

60 to +120

mA

NOTES:
1. Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause
permanent damage to the device. This is a stress rating only and functional operation
of the device at these or any other conditions above those indicated in the operational
sections of this specification is not implied. Exposure to absolute maximum rating
conditions for extended periods may affect reliability. No terminal voltage may exceed
Vcc by +0.5V unless otherwise noted.
2. Inputs and Vcc terminals only.
3. Output and I/O terminals only.






Description

The 74FCT573CT is an octal transparent latch built using an advanced dualmetal CMOS technology. These octal latches have 3-state outputs and are intended for bus oriented applications. The flip-flops appear transparent to the data when Latch Enable (LE) is high. When LE is low, the data that meetsthe set-up time is latched. Data appears on the bus when the Output Enable (OE) is low. When OE of the 74FCT573CT is high, the bus output is in the high-impedance state.
