74FCT533

Features: •IDT54/74FCT373/533/573 equivalent to FASTMspeed and drive•IDT54/74FCT373A/533A/573A up to 30% faster than FAST•Equivalent to FAST output drive over full temperature and voltage supply extremes•IOL = 48mA (commercial) and 32mA (military)•CMOS power levels (1...

product image

74FCT533 Picture
See larger image
SeekIC No. : 004250433 Detail

74FCT533: Features: •IDT54/74FCT373/533/573 equivalent to FASTMspeed and drive•IDT54/74FCT373A/533A/573A up to 30% faster than FAST•Equivalent to FAST output drive over full temperature and ...

74FCT533 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
74FCT533
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

•IDT54/74FCT373/533/573 equivalent to FASTMspeed and drive
•IDT54/74FCT373A/533A/573A up to 30% faster than FAST
•Equivalent to FAST output drive over full temperature and voltage supply extremes
•IOL = 48mA (commercial) and 32mA (military)
•CMOS power levels (1mW typ. static)
•Octal transparent latch with 3-state output control
•JEDEC standard pinout for DIP and LCC
•Product available in Radiation Tolerant and Radiation Enhanced versions
•Military product compliant to MIL-STD-883, Class B

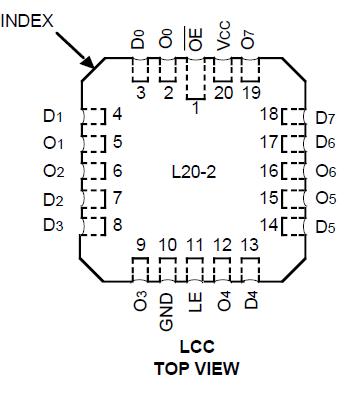

Pinout

Connection Diagram


Specifications

Symbol Rating Commercial Military Unit
VTER(2) Terminal Voltage
withRespecttoGND		 0.5to+7.0 0.5to+7.0 V
VTER(3) Terminal Voltage
with RespectoGND		 0.5 toVCC 0.5 toVCC V
TA Operating
Temperature		 0 to +70 55 to+125
TBIAS Temperature
Under Bias		 55 to+125 65 to+135
TSTG Storage
Temperature		 55 to+125 65 to+150
PT PowerDissipation 0.5 0.5 W
IOUT DC Output
Current		 120 120 mA



Description

The 74FCT533 is octal transparent latches built using an advanced dual metal CMOS technology. These octal latches have 3-state outputs and are intended for bus oriented applications. The flip-flops appear transparent to the data when Latch Enable (LE) is HIGH. When LE is LOW, the data that meets the set-up time is latched. Data appears on the bus when the Output Enable (OE ) is LOW. When OE of the 74FCT533 is HIGH, the bus output is in the high-impedance state.
