74FCT3573/A

Features: •0.5 MICRON CMOS Technology•ESD > 2000V per MIL-STD-883, Method 3015; > 200V using machine model (C = 200pF, R = 0)•25 mil Center SSOP Packages•Extended commercial range of -40to +85•VCC = 3.3V ±0.3V, Normal Range or VCC = 2.7V to 3.6V, Extended Range&...

product image

74FCT3573/A Picture
See larger image
SeekIC No. : 004250273 Detail

74FCT3573/A: Features: •0.5 MICRON CMOS Technology•ESD > 2000V per MIL-STD-883, Method 3015; > 200V using machine model (C = 200pF, R = 0)•25 mil Center SSOP Packages•Extended comme...

74FCT3573/A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
74FCT3573/A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

•0.5 MICRON CMOS Technology
•ESD > 2000V per MIL-STD-883, Method 3015; > 200V using machine model (C = 200pF, R = 0)
•25 mil Center SSOP Packages
•Extended commercial range of -40to +85
•VCC = 3.3V ±0.3V, Normal Range or VCC = 2.7V to 3.6V, Extended Range
•CMOS power levels (0.4mW typ. static)
•Rail-to-Rail output swing for increased noise margin
•Military product compliant to MIL-STD-883, Class B




Pinout

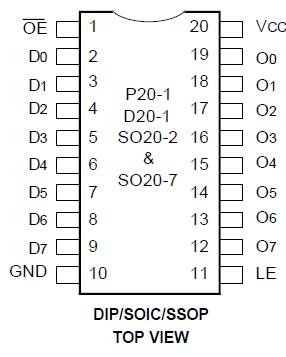

Connection Diagram


Specifications

Symbol Rating Commercial Military Unit
VTER(2) Terminal Voltage
with Respect toGND		 0.5 to +4.6 0.5 to +7.0 V
VTER(3) Terminal Voltage
with Respect toGND		 0.5 to +7.0 0.5 to +7.0 V
VTER(4) Terminal Voltagewith Respectto GND 0.5 to
VCC + 0.5		 0.5 to
VCC + 0.5		 V
TA OperatingTemperature 40 to +85 55 to +125
TBIAS TemperatureUnder Bias 55 to +125 65 to +135
TSTG StorageTemperature 55 to +125 65 to +150
PT Power Dissipation 1.0 1.0 W
IOUT DC Output Current 60 to +60 60 to +60 mA



Description

The 74FCT3573/A is octal transparent latches built using an advanced dual metal CMOS technology.

These octal latches of the 74FCT3573/A have 3-state outputs and are intended for bus oriented applications. The flip-flops appear transparent to the data when Latch Enable (LE) is HIGH. When LE is LOW, the data that meets the set-up time is latched. Data appears on the bus when the Output Enable (OE) is LOW. hen OEis HIGH, the bus output is in the high-impedance tate.
