74FCT244A

Features: • IDT54FCT244 equivalent to FAST™ speed and drive• IDT54/74FCT244A 25% faster than FAST• IDT74FCT244C up to 55% faster than FAST• IOL = 64mA (commercial) and 48mA (military)• CMOS power levels (1mW typ. static)• MIlitary product compliant to MIL-...

product image

74FCT244A Picture
See larger image
SeekIC No. : 004250198 Detail

74FCT244A: Features: • IDT54FCT244 equivalent to FAST™ speed and drive• IDT54/74FCT244A 25% faster than FAST• IDT74FCT244C up to 55% faster than FAST• IOL = 64mA (commercial) and ...

74FCT244A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
74FCT244A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• IDT54FCT244 equivalent to FAST™ speed and drive
• IDT54/74FCT244A 25% faster than FAST
• IDT74FCT244C up to 55% faster than FAST
• IOL = 64mA (commercial) and 48mA (military)
• CMOS power levels (1mW typ. static)
• MIlitary product compliant to MIL-STD-883, Class B
• Meets or exceeds JEDEC Standard 18 specifications
• Available in the following packages:
  Commercial: SOIC
  Military: CERDIP, LCC


Pinout

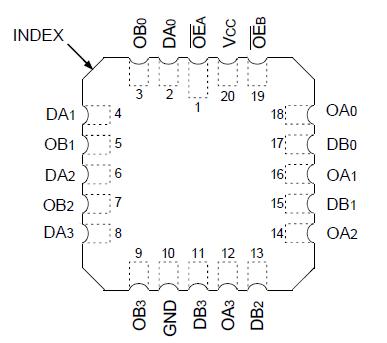

Connection Diagram


Specifications

Symbol
Rating
Commercial
Military
Unit
VTERM(2)
Terminal Voltage
with Respect to GND
0.5 to +7
0.5 to +7
V
VTERM(3)
Terminal Voltage
with Respect to GND
0.5 to VCC
0.5 to VCC
V
TA
Operating Temperature
0 to +70
55 to +125
°C
TBIAS
Temperature under BIAS
55 to +125
65 to +135
°C
TSTG
Storage Temperature
55 to +125
65 to +150
°C
PT
Power Dissipation
0.5
0.5
W
IOUT
DC Output Current
120
120
mA

NOTES:
1. Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability. No terminal voltage may exceed Vcc by +0.5V unless otherwise noted.
2. Input and Vcc terminals only.
3. Output and I/O terminals only.




Description

The IDT octal buffer/line drivers are built using an advanced dual metal CMOS technology. The 74FCT244A is designed to be employed as a memory and address driver, clock driver, and bus-oriented transmitter/receiver which provides improved board density.
