Features: FEATURES:•Common features:0.5 MICRON CMOS TechnologyHigh-speed, low-power CMOS replacement forABT functionsTypical tSK(o) (Output Skew) < 250psLow input and output leakage 1µA (max.)ESD > 2000V per MIL-STD-883, Method 3015;> 200V using machine model (C = 200pF, R = 0...
74FCT16500AT: Features: FEATURES:•Common features:0.5 MICRON CMOS TechnologyHigh-speed, low-power CMOS replacement forABT functionsTypical tSK(o) (Output Skew) < 250psLow input and output leakage 1µ...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Features: Std., A and C speed gradesLow input and output leakage ?1A (max.)CMOS power levelsTrue T...
Features: Std., A and C speed gradesLow input and output leakage ?1A (max.)CMOS power levelsTrue T...
ABSOLUTE MAXIMUM RATINGS(1)
Symbol | Description | Max. | Unit |
VTERM(2) | Terminal Voltage with Respect toGND | 0.5 to +7.0 | V |
VTERM(3) |
Terminal Voltage with Respect to GND | 0.5 to VCC +0.5 |
V |
TSTG | Storage Temperature | 65 to +150 | °C |
IOUT | DC Output Current | 60 to +120 | mA |
POWER SUPPLY CHARACTERISTICS
Symbol | Parameter | Test Conditions(1) | Min. | Typ.(2) | Max. | Unit | |
∆ICC | Quiescent Power Supply Current TTL Inputs HIGH |
VCC = Max VIN = 3.4V(3) |
- | 0.5 | 1.5 | mA | |
ICCD | Dynamic Power Supply Current(4) | VCC = Max., Outputs Open OEAB = OEBA=VCC or GND One Input Toggling 50% Duty Cycle |
VIN = VCC VIN = GND |
- | 75 | 120 | µA/ MHz |
IC | Total Power Supply Current(6) | VCC = Max., Outputs Open fCP = 10MHz (CLKAB) 50% Duty Cycle OEAB = OEBA = VCC LEAB = GND One Bit Toggling fi = 5MHz 50% Duty Cycle |
VIN = VCC VIN = GND |
- | 0.8 | 1.7 | mA |
VIN = 3.4V VIN = GND |
- | 1.3 | 3.2 | ||||
VCC = Max., Outputs Open fCP = 10MHz (CLKAB) 50% Duty Cycle OEAB = OEBA = VCC LEAB = GND Eighteen Bits Toggling fi =2.5MHz 50% Duty Cycle |
VIN = VCC VIN = GND |
- | 3.8 | 6.5(5) | |||
VIN = 3.4V VIN = GND |
- | 8.5 | 20.8(5) |

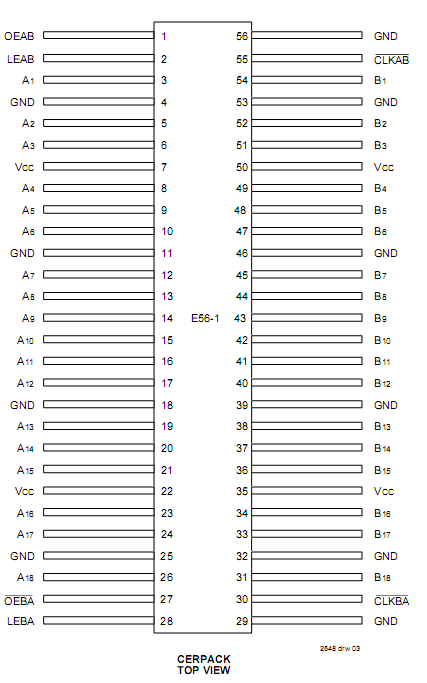

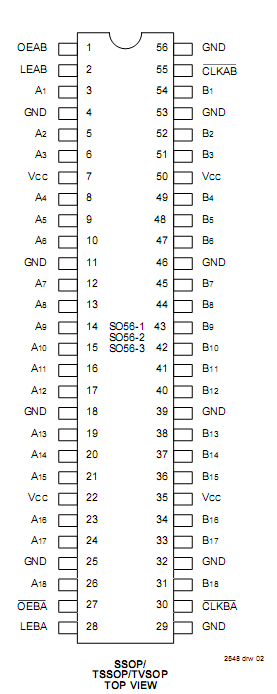

The 74FCT16500AT 18-bit registered transceivers are built using advanced dual metalCMOS technology. These high-speed, low-power 18-bit reg-istered bus transceivers combine D-type latches and D-typeflip-flops to allow data flow in transparent, latched and clockedmodes. Data of the 74FCT16500AT flow in each direction is controlled by output-enable (OEAB and
OEBA), latch enable (LEAB and LEBA)and clock (CLKAB and CLKBA) inputs. For A-to-B data flow,the device operates in transparent mode when LEAB is HIGH.When LEAB is LOW, the A data of the 74FCT16500AT is latched if CLKAB is held ata HIGH or LOW logic level. If LEAB is LOW, the A bus data isstored in the latch/flip-flop on the HIGH-to-LOW transition ofCLKAB. OEAB performs the output enable function on the Bport. Data flow from B port to A port is similar but uses OEBA,LEBA and CLKBA. Flow-through organization of signal pinssimplifies layout. All inputs are designed with hysteresis forimproved noise margin.
The 74FCT16500AT is ideally suited for drivinghigh-capacitance loads and low-impedance backplanes. Theoutput buffers are designed with power off disable capabilityto allow "live insertion" of boards when used as backplanedrivers.
