74FCT162H272AT

Features:

* 0.5 MICRON CMOS Technology
* Typical tSK(o) (Output Skew) < 250ps
* Low input and output leakage 1A (max.)
* ESD > 2000V per MIL-STD-883, Method 3015; > 200V using machine model (C = 200pF, R = 0)
* Packages include 25 mil pitch SSOP, 19.6 mil pitch TSSOP, 15.7 mil pitch TVSOP and 25 mil pitch Cerpack
* Extended commercial range of -40°C to +85°C
* Balanced Output Drivers: ±24mA (commercial) ±16mA (military)
* Reduced system switching noise
* Typical VOLP (Output Ground Bounce) < 0.6V at V_CC = 5V, TA = 25°C
* Bus Hold retains last active bus state during 3-state
* Eliminates the need for external pull up resistors


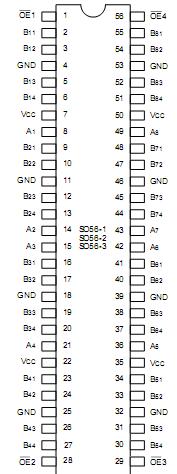

Pinout




Specifications

Symbol	Description	Max.	Unit
VTERM(2)	Terminal Voltage with Respect to GND	0.5to+7.0	V
VTERM(3)	Terminal Voltage with Respect to GND	0.5 toVCC +0.5	V
TSTG	Storage Temperature	65 to +150	°C
IOUT	DC Output Current	60 to +120	mA

Description

The 74FCT162H272AT 16-bit buffer/line drivers are built using advanced dual metal CMOS technology. These high-speed, low-power devices offer bus/backplane interface capability with improved packing density. The flow-through organization of signal pins simplifies layout. The three-state controls are designed to operate these devices in a Quad-Nibble, Dual-Byte or single 16-bit word mode. All inputs are designed with hysteresis for improved
noise margin.

The 74FCT162H272AT has ideally suited for driving high capacitance loads and low-impedance backplanes. The output buffers are designed with power off disable capability to allow "live insertion" of boards when used as backplane drivers.

The 74FCT162H272AT has balanced output drive with current limiting resistors. This offers low ground bounce, minimal undershoot, and controlled output fall times reducing the need for external series terminating resistors. The FCT162240T/AT/CT/ET are plug-in replacements for the 74FCT162H272AT for on-board interface applications.
