74FCT162841ET

0.5 MICRON CMOS Technology
High-speed, low-power CMOS replacement for ABT functions
Typical tSK(o) (Output Skew) < 250ps
Low input and output leakage 1A (max.)
ESD > 2000V per MIL-STD-883, Method 3015; > 200V using machine model (C = 200pF, R = 0)
Packages include 25 mil pitch SSOP, 19.6 mil pitch TSSOP, 15.7 mil pitch TVSOP and 25 mil pitch Cerpack
Extended commercial range of -40°C to +85°C
V_CC = 5V ±10%
Balanced Output Drivers: ±24mA (commercial), ±16mA (military)
Reduced system switching noise
Typical V_OLP (Output Ground Bounce) < 0.6V at V_CC = 5V,T_A = 25°C

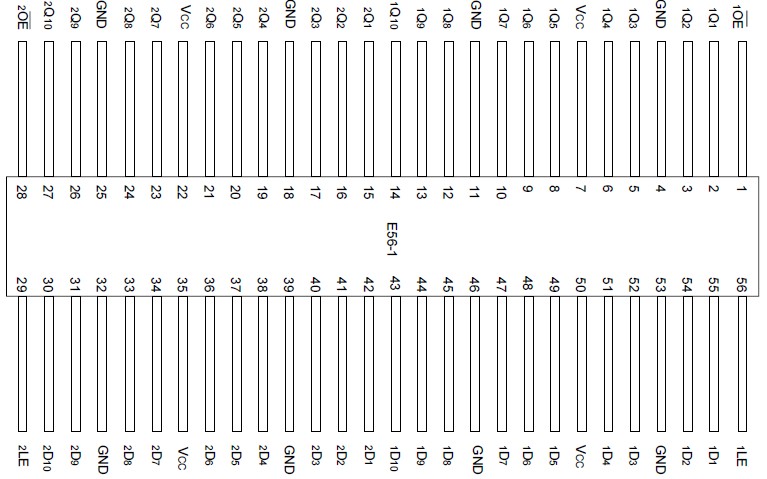

The 74FCT162841ET 20-bit transparent D-type latches are built using advanced dual metal CMOS technology. These high-speed, low-power latches are ideal for temporary storage of data. They can be used for implementing memory address latches, I/O ports, and bus drivers. The Output Enable and Latch Enable controls of the 74FCT162841ET are organized to operate each device as two 10-bit latches or one 20-bit latch. Flow-through organization of signal pins simplifies layout. All inputs  are designed with hysteresis for improved noise margin.

The 74FCT162841ET is ideally suited for driving high-capacitance loads and low-impedance backplanes. The output buffers are designed with power off disable capability to allow "live insertion" of boards when used as backplane
drivers.

The 74FCT162841ET has balanced output drive with current limiting resistors. This offers low ground bounce, minimal undershoot, and controlled output fall  timesreducing the need for external series terminating resistors. The FCT162841AT/BT/CT/ET are plug-in replacements for the 74FCT162841ET for on-board interface applications.
