Features:

0.5 MICRON CMOS Technology
High-speed, low-power CMOS replacement for ABT functions
Typical tSK(o) (Output Skew) < 250ps
Low input and output leakage 1A (max.)
ESD > 2000V per MIL-STD-883, Method 3015; > 200V using machine model (C = 200pF, R = 0)
Packages include 25 mil pitch SSOP, 19.6 mil pitch TSSOP, 15.7 mil pitch TVSOP and 25 mil pitch Cerpack
Extended commercial range of -40°C to +85°C
V_CC = 5V ±10%
Balanced Output Drivers: ±24mA (commercial),±16mA (military)
Reduced system switching noise
Typical V_OLP (Output Ground Bounce) < 0.6V at V_CC= 5V,T_A = 25°C

Pinout

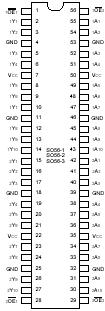

Connection Diagram

Specifications

Symbol	Description	Max.	Unit
V_TERM⁽²⁾	Terminal Voltage with Respect to GND	0.5 to +7.0	V
V_TERM⁽³⁾	Terminal Voltage with Respect to GND	0.5 to V_CC +0.5	V
T_STG	Storage Temperature	65 to +150	°C
I_OUT	DC Output Current	60 to +120	mA

NOTES:
1. Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.
2. All device terminals except FCT162XXXT Output and I/O terminals.
3. Output and I/O terminals for FCT162XXXT.

Description

The 74FCT162827AT 20-bit buffers are built using advanced dual metal CMOS technology. These 20-bit bus drivers provide high-performance bus interface buffering for wide data/address paths or busses carrying parity. Two pair of NAND-ed output enable controls offer maximum control flexibility and are organized to operate the device as two 10-bit buffers or one 20-bit buffer. Flow-through organization of signal pins simplifies layout. All inputs are designed with hysteresis for improved noise margin.

The 74FCT162827AT are ideally suited for driving high capacitance loads and low impedance backplanes. The output buffers are designed with power off disable capability to allow "live insertion" of boards when used as backplane drivers.

The 74FCT162827AT have balanced output drive with current limiting resistors. This offers low ground bounce, minimal undershoot, and controlled output fall timesreducing the need for external series terminating resistors. The FCT162827AT/BT/CT/ET are plug-in replacements for the 74FCT162827AT for on-board interface applications.
