74FCT162701T

Features: • 0.5 MICRON CMOS Technology• Typical tSK(o) (Output Skew) < 250ps• Low input and output leakage 1A (max.)• ESD > 2000V per MIL-STD-883, Method 3015;> 200V using machine model (C = 200pF, R = 0)• Packages include 25 mil pitch SSOP, 19.6 mil pitch TS...

product image

74FCT162701T Picture
See larger image
SeekIC No. : 004249991 Detail

74FCT162701T: Features: • 0.5 MICRON CMOS Technology• Typical tSK(o) (Output Skew) < 250ps• Low input and output leakage 1A (max.)• ESD > 2000V per MIL-STD-883, Method 3015;> 200V...

74FCT162701T Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
74FCT162701T
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 0.5 MICRON CMOS Technology
• Typical tSK(o) (Output Skew) < 250ps
• Low input and output leakage 1A (max.)
• ESD > 2000V per MIL-STD-883, Method 3015;
> 200V using machine model (C = 200pF, R = 0)
• Packages include 25 mil pitch SSOP, 19.6 mil pitch TSSOP,
15.7 mil pitch TVSOP and 25 mil pitch Cerpack
• Extended commercial range of -40°C to +85°C
• Balanced Output Drivers: ±24mA (commercial),
±16mA (military)
• Reduced system switching noise
• Typical VOLP (Output Ground Bounce) < 0.6V at
VCC = 5V, TA = 25°C
• Ideal for new generation x86 write-back cache solutions
• Suitable for modular x86 architectures
• Four deep write FIFO
• Latch in read path
• Synchronous FIFO reset


Pinout

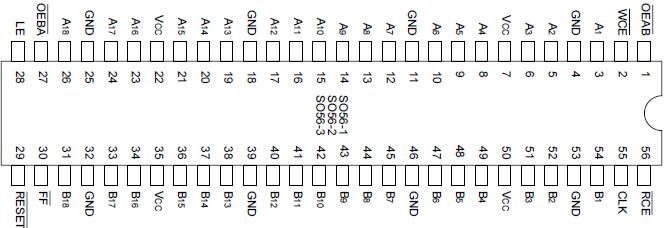

Connection Diagram


Specifications

Symbol Description Max. Unit
VTERM(2) Terminal Voltage with Respect to
GND		 0.5 to +7.0 V
VTERM(3) Terminal Voltage with Respect to
GND		 0.5 to
VCC +0.5		 V
TSTG Storage Temperature 65 to +150 °C
IOUT DC Output Current 60 to +120 mA
NOTES:
1. Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS
may cause permanent damage to the device. This is a stress rating
only and functional operation of the device at these or any other conditions
above those indicated in the operational sections of this specification is
not implied. Exposure to absolute maximum rating conditions for
extended periods may affect reliability.
2. All device terminals except FCT162XXXT Output and I/O terminals.
3. Output and I/O terminals for FCT162XXXT.



Description

The 74FCT162701T is an 18-bit Read/Write buffer with a four deep FIFO and a read-back latch. It can be used as a read/write buffer between a CPU and memory or to interface a high-speed bus and a slow peripheral. The Ato-B (write) path has a four deep FIFO for pipelined operations. The FIFO can be reset and a FIFO full condition is indicated by the full flag (FF). The B-to-A (read) path has a latch. A HIGH on LE, allows data to flow transparently from B-to-A. A LOW on LE allows the data to be latched on the falling edge of LE.

The 74FCT162701T has a balanced output drive with series termination. This provides low ground bounce,minimal undershoot and controlled output edge rates.
