74F823

Features: ·TRI-STATE® outputs·Clock Enable and Clear·Direct replacement for AMD's Am29823PinoutSpecificationsStorage Temperature-65 to +150Ambient Temperature under Bias -55 to +125Junction Temperature under Bias -55 to +175Plastic -55 to +150VCC Pin Potential toGround Pin -0.5V to +7.0VInpu...

product image

74F823 Picture
See larger image
SeekIC No. : 004249862 Detail

74F823: Features: ·TRI-STATE® outputs·Clock Enable and Clear·Direct replacement for AMD's Am29823PinoutSpecificationsStorage Temperature-65 to +150Ambient Temperature under Bias -55 to +125Junction Temp...

74F823 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
74F823
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/2/15

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·TRI-STATE® outputs
·Clock Enable and Clear
·Direct replacement for AMD's Am29823


Pinout

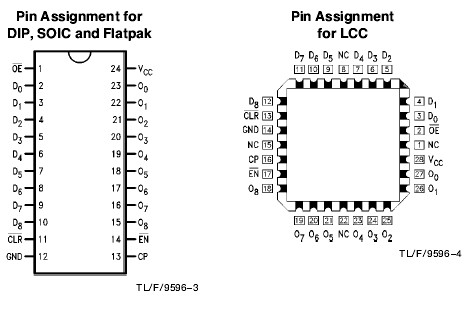

Connection Diagram


Specifications

Storage Temperature                                      -65 to +150
Ambient Temperature under Bias                    -55 to +125
Junction Temperature under Bias                    -55 to +175
Plastic                                                              -55 to +150
VCC Pin Potential to
Ground Pin                                                         -0.5V to +7.0V
Input Voltage (Note 2)                                       -0.5V to +7.0V
Input Current (Note 2)                                -30 mA to +5.0 mA
Voltage Applied to Output
in HIGH State (with VCC e 0V)
Standard Output                                                   -0.5V to VCC
TRI-STATE Output                                               -0.5V to +5.5V
Current Applied to Output
in LOW State (Max)                            twice the rated IOL (mA)


Description

The 74F823 is a 9-bit buffered register. It features Clock Enable and Clear which are ideal for parity bus interfacing in high performance microprogramming systems.

The 74F823 is functionally and pin compatible with AMD's Am29823.
