Product Details

Description



Features:

·TRI-STATE Outputs
·Direct replacement for AMD's Am29821




Pinout

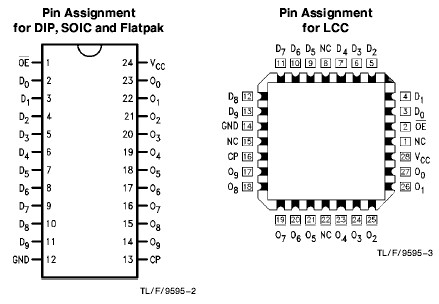

Connection Diagram


Specifications

Storage Temperature                                      -65 to +150
Ambient Temperature under Bias                    -55 to +125
Junction Temperature under Bias                    -55 to +175
Plastic                                                              -55 to +150
VCC Pin Potential to
Ground Pin                                                        -0.5V to +7.0V
Input Voltage (Note 2)                                      -0.5V to +7.0V
Input Current (Note 2)                                -30 mA to +5.0 mA
Voltage Applied to Output
in HIGH State (with VCC e 0V)
Standard Output                                                  +0.5V to VCC
TRI-STATE Output                                              -0.5V to +5.5V
Current Applied to Output
in LOW State (Max)                            twice the rated IOL (mA)


Description

The 74F821 is a 10-bit D-type flip-flop with TRI-STATE® true outputs arranged in a broadside pinout. The 74F821 is functionally and pin compatible with the AMD's Am29821.
