Features:

•Includes features of 73K224L single-chip modem
•On chip 2-wire/4-wire hybrid driver and off hook relay buffer driver
•One-chip multi-mode V.22bis/V.22/V.21 and Bell 212A/103 compatible modem data pump
•FSK (300 bit/s), DPSK (600, 1200 bit/s), or QAM (2400 bit/s) encoding
•Software compatible with other TDK Semiconductor K-Series one-chip modems
•Interfaces directly with standard micro- processors (80C51 typical)
•Parallel or serial bus for control
•Selectable internal buffer/debuffer and scrambler/descrambler functions
•All asynchronous and synchronous operating modes (internal, external, slave)
•Adaptive equalization for optimum perform-ance over all lines
•Programmable transmit attenuation (16 dB,1 dB steps), selectable receive boost (+18 dB)
•Call progress, carrier, answer tone,unscrambled mark, S1, and signal quality monitors
•DTMF, answer and guard tone generators
•Test modes available: ALB, DL, RDL, mark, space, alternating bit, S1 pattern generation and detection
•CMOS technology for low power consumption (typically 100 mW @ 5 V) with power-down mode (15 mW @ 5 V)
•TTL and CMOS compatible inputs and outputs



Pinout

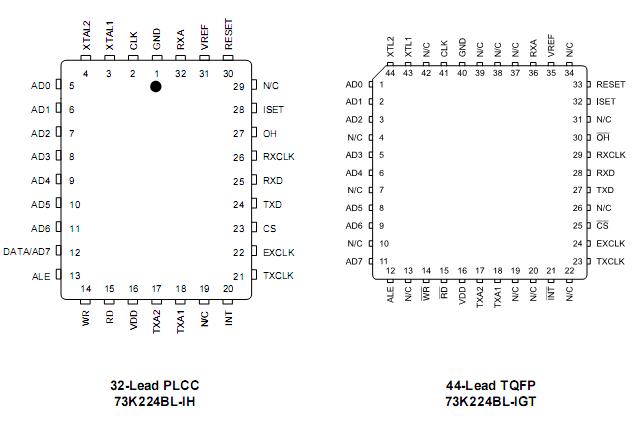

  Connection Diagram


Specifications

PARAMETER RATING
VDD Supply Voltage 7V
Storage Temperature -65 to 150°C
Soldering Temperature (10 sec.) 235°C
Applied Voltage -0.3 to VDD+0.3V
Note: All inputs and outputs are protected from static charge using built-in, industry standard protection devices
and all outputs are short-circuit protected.


Description

  The 73K224BL is a highly integrated single-chip modem IC which provides the functions needed to construct a V.22bis compatible modem, capable of 2400 bit/s full-duplex operation over dial-up lines.The 73K224BL is an enhancement of the 73K224L single-chip modem which adds the hybrid hook switch control, and driver to the 73K224L. The 73K224BL integrates analog, digital, and switched- capacitor array functions on a single chip, offering excellent performance and a high level of functional integration in a 32-Lead PLCC and 44-Lead TQFP
package.


  The 73K224BL operates from a single +5 V supply for low power consumption.


  The 73K224BL is designed to appear to the systems designer as a microprocessor peripheral, and will easily interface with popular single-chip micro-processors (80C51 typical) for control of modem functions through its 8-bit multiplexed address/data bus or via an optional serial control bus. An ALE control simplifies address demultiplexing. Datacommunications normally occur through a separate serial port.The 73K224BL is pin and software compatible with the 73K222BL, allowing system upgrades with a single component change.


  The 73K224BL is designed to be a complete V.22bis compatible modem on a chip. The complete modem requires only the addition of the phone line interface, a control microprocessor, and RS-232 level converter for a typical system. Many functions were included to simplify implementation of typical modem designs. In addition to the basic 2400 bit/s QAM, 600/1200 bit/s DPSK and 300 bit/s FSK modulator/demodulator sections, the device also includes synch/asynch converters,scrambler/descrambler, call progress tone detect,DTMF tone generator capabilities and handshake pattern detectors. Test features of the 73K224BL such as analog loop, digital loop, and remote digital loopback are supported. Internal pattern generators are also included for self-testing.
