73K222AL

· One-chip CCITT V.22, V.21, Bell 212A and Bell 103 standard compatible modem data pump

· Full-duplex operation at 0-300 bit/s (FSK) or 600 and 1200 bit/s (DPSK)

· Pin and software compatible with other TDK Semiconductor Corporation K-Series 1-chip modems

· Interfaces directly with standard microprocessors (8048, 80C51 typical)

· Serial or parallel microprocessor bus for control

· Serial port for data transfer

· Both synchronous and asynchronous modes of operation including V.22 extended overspeed

· Call progress, carrier, precise answer tone (2100 or 2225 Hz), and long loop detectors

· DTMF, and 550 or 1800 Hz guard tone generators

· Test modes available: ALB, DL, RDL, Mark, Space, Alternating bit patterns

· Precise automatic gain control allows 45 dB dynamic range

· CMOS technology for low power consumption using 60 mW @ 5V

· Single +5 volt supply

· PLCC and PDIP packages

  The 73K222AL is a highly integrated single-chip modem IC which provides the functions needed to construct a CCITT V.22, V.21 and Bell 212A compatible modem, capable of 1200 bit/s full-duplex operation over dial-up lines.  The 73K222AL is an enhancement of the 73K212L/AL single-chip modem which adds V.22 and V.21 modes to the Bell 212A and 103 operation of the 73K212AL. In Bell 212A mode,the 73K222AL provides the normal Bell 212A and 103 functions and employs a 2225 Hz answer tone. The 73K222AL in V.22 mode produces either 550 or 1800

Hz guard tone, recognizes and generates a 2100 Hz answer tone, and allows 600 bit/s V.22 or 0

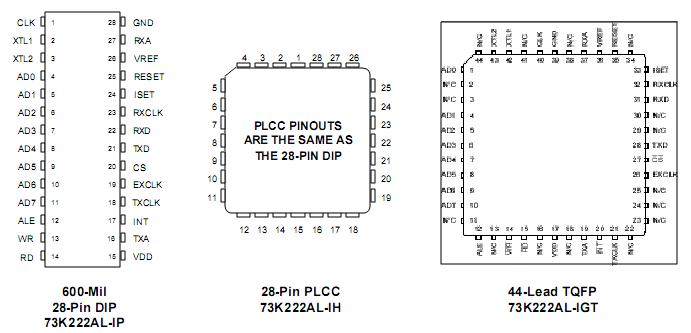

-300 bit/s V.21 operation.  The 73K222AL integrates analog,digital, and switched-capacitor array functions on a single substrate, offering excellent performance and a high level of functional integration in a single 28-pin DIP, PLCC and 44-pin TQFP configuration. The 73K222AL operates from a single +5V supply. The 73K222AL is a new version replacing the 73K222L.The 73K222AL should be specified for all new designs.



  The 73K222AL includes the DPSK and FSK modulator/demodulator functions, call progress and handshake tone monitor and a tone generator capable of tone required for European applications.



  This device supports V.22 (except mode v) and V. 21 modes of operation, allowing both synchronous and asynchronous communications. Test features such as analog loop, digital loop, and remote digital loopback are supported. Internal pattern generators are also included for self-testing. The 73K222AL is designed to appear to the systems designer as a microprocessor peripheral, and will easily interface with popular one-chip microprocessors (80C51 typical) for control of modem functions through its 8-bit multiplexed address/data bus or serial control bus. An ALE control line simplifies address demultiplexing. Data communications occurs through a separate serial port only.



  The 73K222AL is ideal for use in either free standing or integral system modem products where full-duplex 1200 bit/s data communications over the 2-wire switched telephone network is desired. Its high functionality, low power consumption and efficient packaging simplify design requirements and increase system reliability. A complete modem requires only the addition of the phone line interface, a control microprocessor, and RS-232 level converter for a typical system. The 73K222AL is part of TDK Semiconductor Corporation's K-Series family of pin and function compatible single-chip modem products.The 73K222AL allow systems to be configured for higher speeds and Bell or CCITT operation with only a single component change.
