Product Details

Description

Pinout

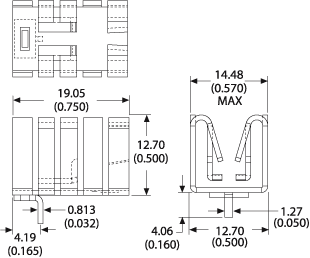

Connection Diagram

Specifications

Part #	Description	Finish	Board Mounting
576802U03100G	Plug in style heat sink with four spring action clips and single tab for horizontal mounting	Unfinished	N/A
This non-electronic component is functionally unaffected by the normal soldering or reflow processes used for semiconductor circuits. The heat resistance time or heat resistance temperature is not applicable for the component.

Description

Thermal Resistance

32.60

Thermal resistance value of 576802U03100G is based on a 75C rise in natural convection
