576802B03100G: Heat Sinks TO-220 HORZ 27.3TR

576802B03100G Data Sheet

US $ .22~.31 / Piece | Get Latest Price

Part Number:: 576802B03100G
Mfg:: Aavid Thermalloy
Supply Ability:: 5000

Price Break

Qty
0~1
1~10
10~100
100~500

Unit Price
$.31
$.28
$.23
$.22

Processing time
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

576802B00000G evaluate
US $.15 - .27 / Piece

Heat Sinks TO-220 VERT 27.3 TR SLIM PLUG-IN NO TABS
576802B03100 evaluate
Heat Sinks TO-220 HORIZ 27.3TR PLUG-IN SOLDER TABS
576802B03200G evaluate
US $.23 - .23 / Piece

BOARD LEVEL HEAT SINK

Product Details

Quick Details

Product :	Heatsinks	Mounting Style :	Plug In
Heatsink Material :	Aluminum	Thermal Resistance :	27.3 C / W
Length :	19.05 mm	Width :	14.48 mm
Height :	12.7 mm	Designed for :	TO-220, TO-262

Description

Fin Style :
Product : Heatsinks
Heatsink Material : Aluminum
Height : 12.7 mm
Length : 19.05 mm
Thermal Resistance : 27.3 C / W
Width : 14.48 mm
Mounting Style : Plug In
Designed for : TO-220, TO-262

Pinout

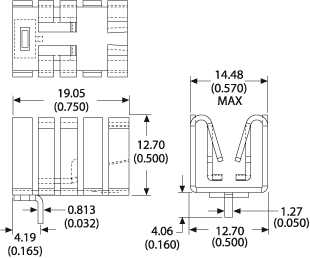

Connection Diagram

Specifications

Part #	Description	Finish	Board Mounting
576802B03100G	Plug in style heat sink featuring four spring action clips and single tab for horizontal mounting	Black Anodize	View Hole Dimensions
This non-electronic component is functionally unaffected by the normal soldering or reflow processes used for semiconductor circuits. The heat resistance time or heat resistance temperature is not applicable for the component.

Description

Thermal Resistance

27.30

Thermal resistance value of 576802B03100G is based on a 75C rise in natural convection

Parameters:

Technical/Catalog Information	576802B03100G
Vendor	Aavid Thermalloy
Category	Fans, Thermal Management
Attachment Method	Clip and PC Pin
Height	0.75" (19.05mm)
Material	Aluminum
Package Cooled	TO-220, TO-262
Power Dissipation @ Temperature Rise	1W @ 30°C
Thermal Resistance @ Forced Air Flow	7.0°C/W @ 400 LFM
Outline	14.48mm x 12.70mm
Thermal Resistance @ Natural	27.3°C/W
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
