576802B04100G

Heat Sinks TO-220 VERT 27.3 TR

product image

576802B04100G Picture
See larger image
SeekIC No. : 002533932 Detail

576802B04100G: Heat Sinks TO-220 VERT 27.3 TR

576802B04100G Data Sheet

floor Price/Ceiling Price

US $ .23~.23 / Piece | Get Latest Price
Part Number:
576802B04100G
Mfg:
Aavid Thermalloy
Supply Ability:
5000

Price Break

  • Qty
  • 0~9300
  • Unit Price
  • $.23
  • Processing time
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Product : Heatsinks Mounting Style : Plug In
Heatsink Material : Aluminum Thermal Resistance : 27.3 C / W
Length : 12.7 mm Width : 14.48 mm
Height : 19.05 mm Designed for : TO-220, TO-262

Description

Fin Style :
Product : Heatsinks
Heatsink Material : Aluminum
Length : 12.7 mm
Height : 19.05 mm
Thermal Resistance : 27.3 C / W
Width : 14.48 mm
Mounting Style : Plug In
Designed for : TO-220, TO-262


Pinout

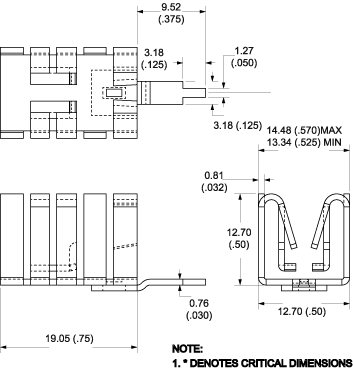

Connection Diagram


Specifications

Part # Description Finish Board Mounting
576802B04100G Plug in style heat sink featuring four spring action clips and single tab for vertical mounting Black Anodize View Hole Dimensions
This non-electronic component is functionally unaffected by the normal soldering or reflow processes used for semiconductor circuits. The heat resistance time or heat resistance temperature is not applicable for the component.




Description

Thermal Resistance 27.30

Thermal resistance value of 576802B04100G is based on a 75C rise in natural convection


Parameters:

Technical/Catalog Information576802B04100G
VendorAavid Thermalloy
CategoryThermal Management
Attachment MethodClip and PC Pin
Height0.75" (19.05mm)
MaterialAluminum
Package CooledTO-220, TO-262
Power Dissipation @ Temperature Rise1W @ 30°C
Thermal Resistance @ Forced Air Flow7.0°C/W @ 400 LFM
Outline14.48mm x 12.70mm
Thermal Resistance @ Natural27.3°C/W
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names 576802B04100G
576802B04100G
HS366 ND
HS366ND
HS366
