573400D00010G

Heat Sinks SLV HEAT SINK TO-268

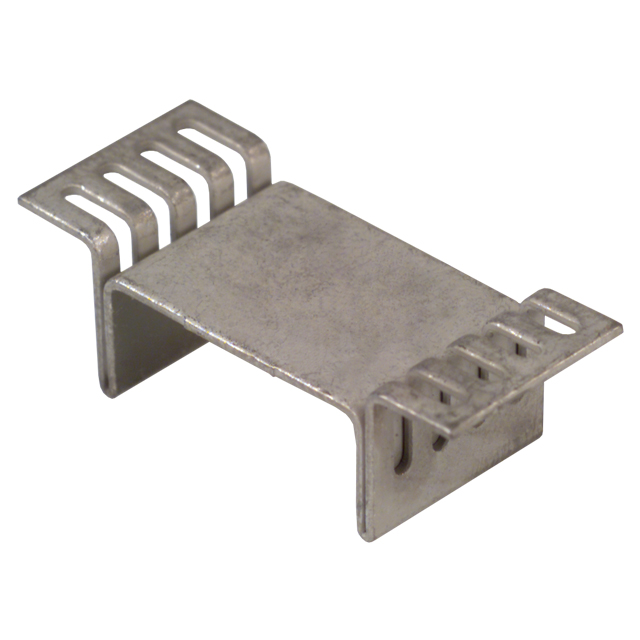

product image

573400D00010G Picture
See larger image
SeekIC No. : 002533052 Detail

573400D00010G: Heat Sinks SLV HEAT SINK TO-268

573400D00010G Data Sheet

floor Price/Ceiling Price

US $ .38~.47 / Piece | Get Latest Price
Part Number:
573400D00010G
Mfg:
Aavid Thermalloy
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~10
  • 10~100
  • 100~500
  • Unit Price
  • $.47
  • $.44
  • $.41
  • $.38
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Product : Heatsinks Mounting Style : SMD/SMT
Heatsink Material : Aluminum Thermal Resistance : 14 C / W
Length : 12.7 mm Width : 30.988 mm
Height : 10.2 mm Designed for : TO-268

Description

Fin Style :
Product : Heatsinks
Heatsink Material : Aluminum
Mounting Style : SMD/SMT
Designed for : TO-268
Length : 12.7 mm
Thermal Resistance : 14 C / W
Width : 30.988 mm
Height : 10.2 mm


Pinout

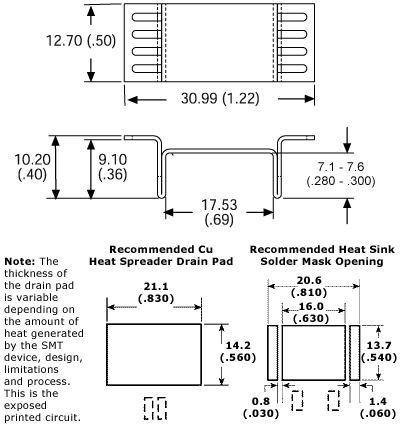

Connection Diagram


Specifications

Part # Description Finish Board Mounting
573400D00010G Surface mount heat sink for D3 Pak (TO-268) package semiconductors Matte Tin Plated N/A
This non-electronic component is functionally unaffected by the normal soldering or reflow processes used for semiconductor circuits. The heat resistance time or heat resistance temperature is not applicable for the component.




Description

Thermal Resistance 14.00

Thermal resistance value of 573400D00010G is based on a 75C rise in natural convection


Parameters:

Technical/Catalog Information573400D00010G
VendorAavid Thermalloy
CategoryFans, Thermal Management
Attachment MethodSMD Pad
Height0.4" (10.16mm)
Material-
Package CooledD³Pak
Power Dissipation @ Temperature Rise1W @ 20°C
Thermal Resistance @ Forced Air Flow4°C/W @ 600 LFM
Outline30.99mm x 12.70mm
Thermal Resistance @ Natural14°C/W
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names 573400D00010G
573400D00010G
HS339TR ND
HS339TRND
HS339TR
