573400D00000G

Heat Sinks SM FOR D3 PAK 10.16mm HORIZ TIN PL

product image

573400D00000G Picture
See larger image
SeekIC No. : 002533890 Detail

573400D00000G: Heat Sinks SM FOR D3 PAK 10.16mm HORIZ TIN PL

573400D00000G Data Sheet

floor Price/Ceiling Price

US $ 1.46~1.51 / Piece | Get Latest Price
Part Number:
573400D00000G
Mfg:
Aavid Thermalloy
Supply Ability:
5000

Price Break

  • Qty
  • 0~1350
  • 1350~1500
  • Unit Price
  • $1.51
  • $1.46
  • Processing time
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Product : Heatsinks Mounting Style : SMD/SMT
Heatsink Material : Aluminum Thermal Resistance : 14 C / W
Length : 12.7 mm Width : 30.99 mm
Height : 10.2 mm Designed for : TO-268, Surface Mount

Description

Fin Style :
Product : Heatsinks
Heatsink Material : Aluminum
Mounting Style : SMD/SMT
Length : 12.7 mm
Thermal Resistance : 14 C / W
Height : 10.2 mm
Width : 30.99 mm
Designed for : TO-268, Surface Mount


Pinout

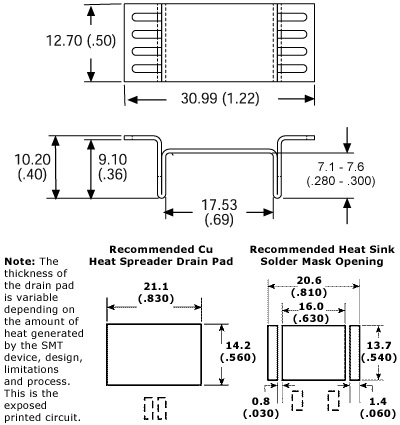

Connection Diagram


Specifications

Part # Description Finish Board Mounting
573400D00000G Surface mount heat sink for D3 Pak (TO-268) package semiconductors Matte Tin Plated N/A
This non-electronic component is functionally unaffected by the normal soldering or reflow processes used for semiconductor circuits. The heat resistance time or heat resistance temperature is not applicable for the component.




Description

Thermal Resistance 14.00

Thermal resistance value of 573400D00000G is based on a 75C rise in natural convection


Parameters:

Technical/Catalog Information573400D00000G
VendorAavid Thermalloy
CategoryThermal Management
Attachment MethodSMD Pad
Height0.4" (10.16mm)
MaterialCopper
Package CooledD³Pak
Power Dissipation @ Temperature Rise1W @ 20°C
Thermal Resistance @ Forced Air Flow4°C/W @ 600 LFM
Outline30.99mm x 12.70mm
Thermal Resistance @ Natural14°C/W
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names 573400D00000G
573400D00000G
