Features: • Up to 60 MIPS at 60MHz core frequency
• DSP and MCU functionality in a unified,
C-efficient architecture
• 512KB Program Flash
• 4KB Program RAM
• 32KB Data Flash
• 32KB Data RAM
• 32KB Boot Flash
• Up to two 6-channel PWM modules
• Four 4-channel, 12-bit ADCs
• Temperature Sensor
• Up to two Quadrature Decoders
• Up to two FlexCAN modules
• Optional On-Chip Regulator
• Two Serial Communication Interfaces (SCIs)
• Up to two Serial Peripheral Interface (SPIs)
• Up to four general-purpose Quad Timers
• Computer Operating Properly (COP)/Watchdog
• JTAG/Enhanced On-Chip Emulation (OnCE™) for
unobtrusive, real-time debugging
• Up to 49 GPIO lines

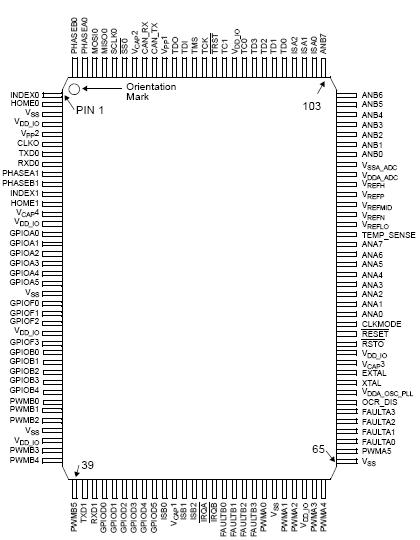

• 128-pin LQFP PackagePinout
Specifications
| Characteristic |
Symbol |
Notes |
Min |
Max |
Unit |
| Supply Voltage |
VDD_IO |
|
-0.3 |
4.0 |
V |
| ADC Supply Voltage |
VDDA_ADC,
VREFH |
VREFH must be less than or
equal to VDDA_ADC |
-0.3 |
4.0 |
V |
| Oscillator / PLL Supply Voltage |
VDDA_OSC_PLL |
|
-0.3 |
4.0 |
V |
| Internal Logic Core Supply Voltage |
VDD_CORE |
OCR_DIS is High |
-0.3 |
3.0 |
V |
| Input Voltage (digital) |
VIN |
Pin Groups 1, 2, 5, 6, 9, 10 |
-0.3 |
6.0 |
V |
| Input Voltage (analog) |
VINA |
Pin Groups 11, 12, 13 |
-0.3 |
4.0 |
V |
| Output Voltage |
VOUT |
Pin Groups 1, 2, 3, 5, 6, 7, 8 |
-0.3 |
4.0
6.01 |
V |
| Output Voltage (open drain) |
VOD |
Pin Group 4 |
-0.3 |
6.0 |
V |
| Ambient Temperature (Automotive) |
TA |
|
-40 |
125 |
°C |
| Ambient Temperature (Automotive) |
TA |
|
-40 |
105 |
°C |
| Junction Temperature (Automotive) |
TJ |
|
-40 |
150 |
°C |
| Junction Temperature (Industrial) |
TJ |
|
-40 |
125 |
°C |
| Storage Temperature (Automotive) |
TSTG |
|
-55 |
150 |
°C |
| Storage Temperature (Industrial) |
TSTG |
|
-55 |
150 |
°C |
Note: Pins in italics are NOT available in the 56F8165 device.
Pin Group 1: TXD0-1, RXD0-1, SS0, MISO0, MOSI0
Pin Group 2: PHASEA0, PHASEA1, PHASEB0, PHASEB1, INDEX0, INDEX1, HOME0, HOME1, ISB0-2, ISA0-2, TD2-3, TC0-1,
TDO, SCLK0
Pin Group 3: RSTO, TDO
Pin Group 4: CAN_TX
Pin Group 5: D0-15, GPIOD0-5
Pin Group 6: A8-15, GPIOB0-4, TD0-1
Pin Group 7: CLKO
Pin Group 8: PWMA0-5, PWMB0-5
Pin Group 9: IRQA, IRQB, RESET, EXTBOOT, TRST, TMS, TDI, CAN_RX, EMI_MODE, FAULTA0-3, FAULTB0-3
Pin Group 10: TCK
Pin Group 11: XTAL, EXTAL
Pin Group 12: ANA0-7, ANB0-7
Pin Group 13: OCR_DIS, CLKMODEDescriptionThe 56F8365 and 56F8165 are members of the 56800E core-based family of controllers. Each combines, on a single chip, the processing power of a Digital Signal Processor (DSP) and the functionality of a microcontroller with a flexible set of peripherals to create an extremely cost-effective solution. Because of their low cost, configuration flexibility, and compact program code, the 56F8365 and 56F8165 are well-suited for many applications. The 56F8365 include many peripherals that are especially useful for motion control, smart appliances, steppers, encoders, tachometers, limit switches, power supply and control, automotive control (56F8365 only), engine management, noise suppression, remote utility metering, industrial control for power, lighting, and automation applications.
The 56800E core is based on a Harvard-style architecture consisting of three execution units operating in parallel, allowing as many as six operations per instruction cycle. The MCU-style programming model and optimized instruction set of 56F8365 allow straightforward generation of efficient, compact DSP and control code. The instruction set is also highly efficient for C/C++ Compilers to enable rapid development of optimized control applications.
The 56F8365 and 56F8165 support program execution from internal memories. Two data operands can be accessed from the on-chip data RAM per instruction cycle. These 56F8365 also provide two external dedicated interrupt lines and up to 49 General Purpose Input/Output (GPIO) lines, depending on peripheral configuration.
56F8365 Data Sheet
