Features:

* 5V tolerant inputs and outputs
* Power down high impedance inputs and outputs
* Supports live insertion/withdrawal
* 2.0V3.6V VCC supply operation
* ±24 mA output drive
* Implements patented noise/EMI reduction circuitry
* Functionally compatible with the 54 series 16373
* ESD performance:
   Human body model > 2000V
   Machine model > 200V
* Standard Microcircuit Drawing (SMD) 5962-9953401


Pinout

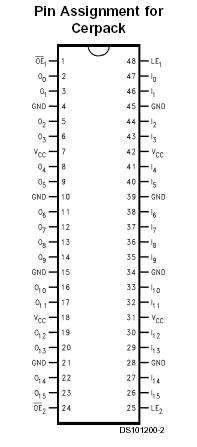

Connection Diagram


Specifications

Supply Voltage (VCC) ..............................................................................−0.5V to +7.0V
DC Input Voltage (VI) .............................................................................−0.5V to +7.0V
DC Input Diode Current (IIK)
   VI < GND .........................................................................................................−50 mA
DC Output Diode Current (IOK)
  VO < GND ..........................................................................................................−50mA
  VO  VCC ..........................................................................................................+50mA
DC Output Voltage (VO) (Note 2)
  Output in High or Low State .........................................................-0.5V to VCC + 0.5V
  Output in TRI-STATE -................................................................................0.5V to 7.0V
DC Output Source or Sink Current
(IO) ....................................................................................................................±50mA
DC VCC or Ground Current ...............................................................................±400mA
Storage Temperature Range
(TSTG) ...................................................................................................−65 to +150
Power Dissapation .............................................................................................750mW
Junction Temperature (TJ) .....................................................................................175


Description

The 54LCX16373 contains sixteen non-inverting latches with TRI-STATE® outputs and is intended for bus oriented applications. The device is byte controlled. The flip-flops 54LCX16373 appear transparent to the data when the Latch Enable (LE) is HIGH. When LE is low, the data that meets the setup time is latched. Data of 54LCX16373 appears on the bus when the Output Enable (OE) is LOW. When OE is HIGH, the outputs are in TRISTATE.

The 54LCX16373 is designed for low voltage (3.3V) VCC applications with capability of interfacing to a 5V signal environment.

The 54LCX16373 is fabricated with an advanced CMOS technology to achieve high speed operation while maintaining CMOS low power dissipation.
