* 5V tolerant inputs and outputs
* Power down high impedance inputs and outputs
* Supports live insertion/withdrawal
* 2.0V3.6V VCC supply operation
* ±24 mA output drive
* Implements patented noise/EMI reduction circuitry
* Functionally compatible with 54 series 16244
* ESD performance:
Human body model > 2000V
Machine model > 200V
* Standard Microcircuit Drawing (SMD) 5962-9950501
Supply Voltage (VCC) ..............................................................................−0.5V to +7.0V
DC Input Voltage (VI) ..............................................................................−0.5V to +7.0V
DC Input Diode Current (IIK)
VI < GND ..........................................................................................................−50 mA
DC Output Diode Current (IOK)
VO < GND ..........................................................................................................−50mA
VO VCC........................................................................................................... +50mA
DC Output Voltage (VO) (Note 2)
Output in High or Low State ..........................................................-0.5V to VCC + 0.5V
Output in TRI-STATE .................................................................................-0.5V to 7.0V
DC Output Source or Sink Current
(IO) ......................................................................................................................±50mA
DC VCC or Ground Current .................................................................................±400mA
Storage Temperature Range
(TSTG) .....................................................................................................−65 to +150
Power Dissapation ...............................................................................................750mW
Junction Temperature (TJ) .......................................................................................175

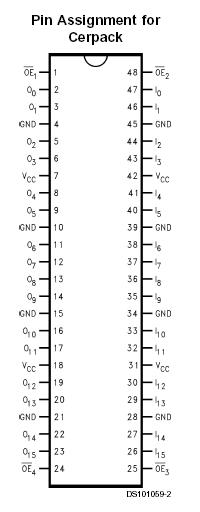

The 54LCX16244 contains sixteen non-inverting buffers with TRI-STATE® outputs designed to be employed as a memory and address driver, clock driver, or bus oriented transmitter/ receiver. The 54LCX16244 is nibble controlled. Each nibble has separate TRI-STATE control inputs which can be shorted together for full 16-bit operation.
The 54LCX16244 is designed for low voltage (3.3V) VCC applicationswith capability of interfacing to a 5V signal environment.
The 54LCX16244 is fabricated with an advanced CMOS technology to achieve high speed operation while maintaining CMOS low power dissipation.
