Product Details

Description

Features:

• 1.5V drive.
• Halogen Free compliance.

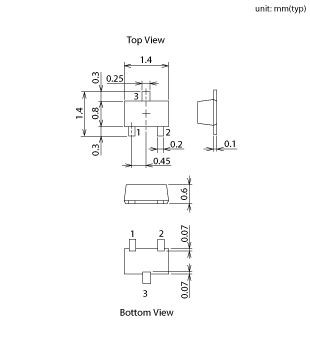

Pinout

Specifications

Parameter	Symbol	Conditions	Ratings	Unit
Drain-to-Source Voltage	V_DSS		30	V
Gate-to-Source Voltage	V_GSS		±10	V
Drain Current (DC)	I_D		0.35	A
Drainpeak Current(Pulse)	I_DP	PW10s, duty cycle1%	1.4	A
Allowable Power Dissipation	P_D	When mounted on glass epoxy substrate(145mm80mm1.6mm)	0.15	W
Channel Temperature	T_ch		150
Storage Temperature	T_stg		-55 to +150

Absolute maximum ratings
VDSS [V]	30
VGSS [V]	10
ID [A]	0.35
PD [W]	0.15 When mounted on ceramic substrate (3000mm²*0.8mm) 1unit

Electrical characteristics
RDS(on) typ [] VGS=4V	0.75
RDS(on) typ [] VGS=2.5V ID [A]=0.1	0.9
RDS(on) typ [] VGS=1.5V ID [A]=0.01	1.8
VGS(off) min [V]	0.4
VGS(off) max [V]	1.3
\|yfs\| typ [S]	0.6
Ciss typ [pF]	28
Qg typ [nC]	0.87
