Product Details

Description



Features:

·10W OUTPUT POWER RL = 8Ω, @ THD = 10% VCC = 28V
·ST-BY AND MUTE FUNCTIONS
·NO BOUCHEROT CELL
·NO ST-BY RC INPUT NETWORK
·SINGLE SUPPLY RANGING UP TO 35V
·SHORT CIRCUIT PROTECTION
·THERMAL OVERLOAD PROTECTION
·INTERNALLY FIXED GAIN
·SOFT CLIPPING
·LOW TURN-ON TURN-OFF POP NOISE
·MULTIWATT 15 PACKAGE

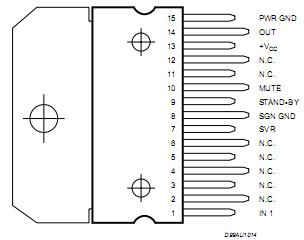

Pinout

Connection Diagram


Specifications

Symbol Parameters Value Unit
VS DC Supply Voltage 40 V
VIN Maximum Input Voltage 8 Vpp
Ptot Total Power Dissipation (Tamb = 70°C) 16 W
Tamb Ambient Operating Temperature Range (1) -20 to +85
Tstg, Tj Storage and Junction Temperature -40 to 150
(1) Operation between -20 to 85 °C guaranteed by correlation with 0 to 70°C.
(2) Pin 3 is ESD sensitive (max. voltage ±1.5KV)


Description

The 38042 10W is class AB power amplifier assembled in the @Multiwatt 15 package, spe-cially designed for high quality sound, TV applica-tions.

Features of the 38042 include  Stand-by and mute functions.
