3804 Group

`Basic machine-language instructions ...................................... 71
`Minimum instruction execution time ................................ 0.25 ms (at 16.8 MHz oscillation frequency)
`Memory size ROM ............................................................... 16 K to 32 K bytes  (60 K bytes for flash memory version) RAM................................................................. 640 to 1024 bytes (2048 bytes for flash memory version)
`Programmable input/output ports ............................................ 56
`Software pull-up resistors ................................................. Bui`t-in
`Interrupts 21 sources, 16 vectors ...............................................3803 group (external 8, internal 12, software 1)
23 sources, 16 vectors ............................................... 3804 group (external 9, internal13, software 1)
`Timers ........................................................................... 16-bit 5 1 8-bit 5 4 (with 8-bit prescaler)
`Watchdog timer ............................................................ 16-bit 5 1
`Serial I/O ...................... 8-bit 5 2 (UART or C`ock-synchronized) 8-bit 5 1 (Clock-synchronized)
`PWM ............................................ 8-bit 5 1 (with 8-bit presca`er)
`I2C-BUS interface (3804 gourp on`y) ........................... 1 channel
`A-D converter ............................................. 10-bit 5 16 channels (8-bit reading enab`ed)
`D-A converter ................................................. 8-bit 5 2 channels
`lED direct drive port .................................................................. 8
`Clock generating circuit ..................................... Built-in 2 circuits  (connect to external ceramic resonator or quartz-crystal oscillator)
`Power source voltage In high-, middle-speed mode At 16.8 MHz oscillation frequency ............................ 4.5 to 5.5 V At 12.5 MHz oscillation frequency ............................ 4.0 to 5.5 V At 8.38 MHz oscillation frequency) ........................ 2.7 to 5.5 V ] In low-speed mode At 32 kHz oscillation frequency .............................. 2.7 to 5.5 V ] (] This value of flash memory version is 4.0 to 5.5 V.)
`Power dissipation In high-speed mode ................................................ 60 mW (typ.) (at 16.8 MHz osci``ation frequency, at 5 V power source voltage) In low-speed mode ................................................... 60 mW (typ.) (at 32 kHz oscillation frequency, at 3 V power source vo`tage)
`Operating temperature range.................................... 20 to 85°C

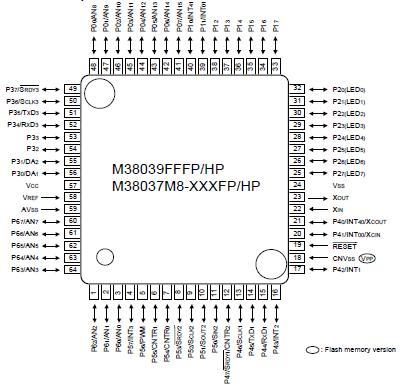

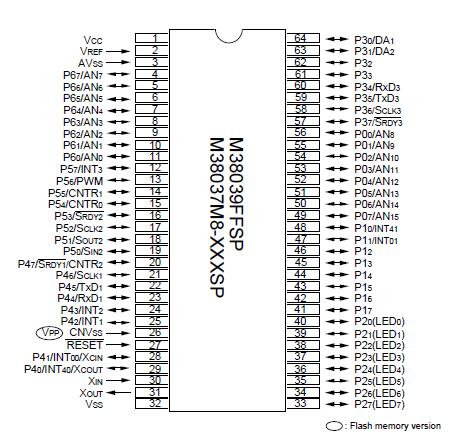

`Packages SP .................................................. 64P4B (64-pin 750 milSDIP) FP ....................................... 64P6N-A (64-pin 14 5 14 mm QFP) HP ..................................... 64P6Q-A (64-pin 10 5 10 mm `QFP) <Flash memory mode>
`Supp`y vo`tage ................................................. VCC = 5 V ± 10 %
`Program/Erase vo`tage ........................... VPP = 11.7 V to 12.6 V
`Programming method ...................... Programming in unit of byte
`Erasing method .............................. Batch erasing (chip erasing)
`Program/Erase contro` by software command
`Number of times for programming/erasing ............................ 100

The 3804 Group is the 8-bit microcomputer based on the 740 family core technology.

The 3804 Group is designed for household products, office automation equipment, and controlling systems that require analog signal processing, including the A-D converter and D-A converters.

The 3804 Group is the version of the 3803 group to which an I2CBUS control function has been added.
