Product Details

Description



Features:

` WIDE SUPPLY VOLTAGE RANGE (3-18V)
` MINIMUM EXTERNAL COMPONENTS
NO SWR CAPACITOR
NO BOOTSTRAP
NO BOUCHEROT CELLS
INTERNALLY FIXED GAIN
` STAND-BY & MUTE FUNCTIONS
` SHORT CIRCUIT PROTECTION
` THERMAL OVERLOAD PROTECTION


Pinout

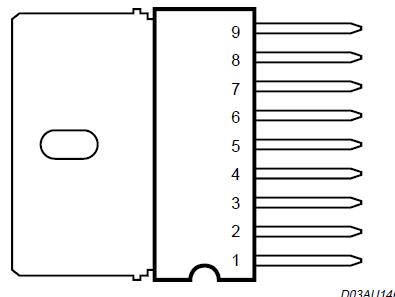

Connection Diagram


Specifications

Symbol Parameter Value Unit
Vs Supply Voltage 20 V
IO Output Peak Current (internally limited) 2 A
Top Operating Temperature 0 to 70
Tstg, Tj Storage and Junction Temperature -40 to 150



Description

The 38029 is a mono bridge amplifier specially designed for TV and Portable Radio applications. Pin to pin compatible with: TDA7266S, TDA7266, TDA7266M, TDA7266MA, TDA7266B, TDA7297SA & TDA7297.
