Product Details

Description



Features:

• Basic machine-language instructions....................................... 71
• The minimum instruction execution time ............................ 0.5 ms (at 8 MHz oscillation frequency)
• Memory size ROM .................................................................. 8 K to 32 K bytes RAM ................................................................. 384 to 1024 bytes
•Programmable input/output ports ............................................. 56
•Interrupts .................................................. 16 sources, 16 vectors
•Timers ............................................................................. 8 bit 5 4
•Serial I/O1 .................... 8-bit 5 1 (UART or Clock-synchronized)
•Serial I/O2 .................................... 8-bit 5 1 (Clock-synchronized)
•PWM................................................................................ 8-bit 5 1
•A-D converter .................................................. 8-bit 5 8 channels
•D-A converter .................................................. 8-bit 5 2 channels
•Clock generating circuit ....................... Internal feedback resistor
(connect to external ceramic resonator or quartz-crystal oscillator)
•Power source voltage ..................................................3.0 to 5.5 V (Extended operating temperature version : 4.0 to 5.5 V)
•Power dissipation ............................................................... 32 mW
•Memory expansion possible
•Operating temperature range .................................... 20 to 85°C (Extended operating temperature version : 40 to 85°C)




Application

Office automation, VCRs, tuners, musical instruments, cameras, air conditioners, etc.




Pinout

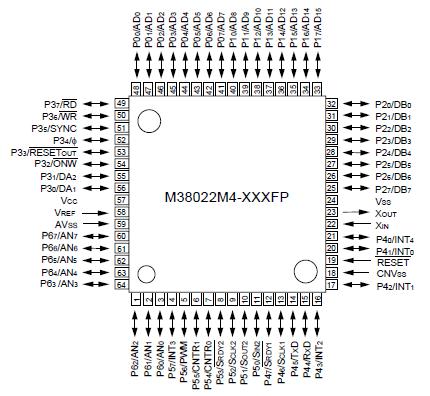

  Connection Diagram


Specifications

Symbol
Parameter
Conditions
Ratings
Unit
VCC
Power source voltage
All voltages are based
on VSS.
Output transistors are
cut off.
0.3 to 7.0
V
VI
Input voltage P06, P07, P10P17, P20P27,
P30, P31, P52P57, P60P67, VREF
0.3 to VCC + 0.3
V
VI
Input voltage RESET, XIN
0.3 to +0.3
V
VO
Output voltage P06, P07, P10P17, P20P27,
P30, P31, P52P57, P60P67, XOUT
0.3 to VCC + 0.3
V
PD
Power dissipation
Ta = 25
1000(Note)
mW
TOPR
Operating temperature
TSTG
Storage temperature



Description

The 3802 Group is the 8-bit microcomputer based on the 740 family core technology.

The 3802 Group is designed for controlling systems that require analog signal processing and include two serial I/O functions, A-D converters, and D-A converters.

The various microcomputers in the 3802 group include variations of internal memory size and packaging. For details, refer to the section on part numbering.

For details on availability of microcomputers in the 3802 Group, refer to the section on group expansion.
