37992

Features: ` DMOS POWER OUTPUT` HIGH OUTPUT POWER CAPABILITY 4x25W/4W @ 14.4V, 1KHZ, 10% THD, 4x35W EIAJ` MAX. OUTPUT POWER 4x60W/2W` FULL I2C BUS DRIVING: ST-BY INDEPENDENT FRONT/REAR SOFT PLAY/MUTE SELECTABLE GAIN 26dB - 12dB (FOR LOW NOISE LINE OUTPUT FUNCTION) I2C BUS DIGITAL DIAGNOSTICS` FULL ...

product image

37992 Picture
See larger image
SeekIC No. : 004229231 Detail

37992: Features: ` DMOS POWER OUTPUT` HIGH OUTPUT POWER CAPABILITY 4x25W/4W @ 14.4V, 1KHZ, 10% THD, 4x35W EIAJ` MAX. OUTPUT POWER 4x60W/2W` FULL I2C BUS DRIVING: ST-BY INDEPENDENT FRONT/REAR SOFT PLAY/MUTE...

37992 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
37992
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` DMOS POWER OUTPUT
` HIGH OUTPUT POWER CAPABILITY 4x25W/4W @ 14.4V, 1KHZ, 10% THD, 4x35W EIAJ
` MAX. OUTPUT POWER 4x60W/2W
` FULL I2C BUS DRIVING:
ST-BY
INDEPENDENT FRONT/REAR SOFT PLAY/MUTE
SELECTABLE GAIN 26dB - 12dB (FOR LOW NOISE LINE OUTPUT FUNCTION)
I2C BUS DIGITAL DIAGNOSTICS
` FULL FAULT PROTECTION
` DC OFFSET DETECTION
` FOUR INDEPENDENT SHORT CIRCUIT PROTECTION
` CLIPPING DETECTOR
` ESD PROTECTION


Pinout

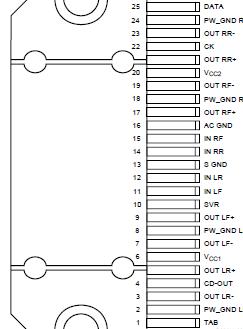

Connection Diagram


Specifications

Symbol Parameter Value Unit
Vop Operating Supply Voltage 18 v
VS DC Supply Voltage 28 v
Vpeak Peak Supply Voltage (for t = 50ms) 50 v
VCK CK pin Voltage 6 V
VDATA Data Pin Voltage 6 v
IO Output Peak Current (not repetitive t = 100ms) 8 A
IO Output Peak Current (repetitive f > 10Hz) 6 A
Ptot Power Dissipation Tcase = 70°C 85 W
Tstg, Tj Storage and Junction Temperature -55 to 150



Description

The 37992 is a new BCD technology QUAD BRIDGE type of car radio amplifier in Flexiwatt25 package specially intended for car radio applications. Thanks to the DMOS output stage the TDA7561 has a very low distortion allowing a clear powerful sound.This device is equipped with a full diagnostics array that communicates the status of each speaker through the I2C bus.The possibility to control the configuration and behaviour of the device by means of the I2C bus makes TDA7561 a very flexible machine.
