Product Details

Description



Features:

· High performance fast PLL for RDS-system
· Electronic alignment for the preselection stages
· All functions bus-controlled




Pinout

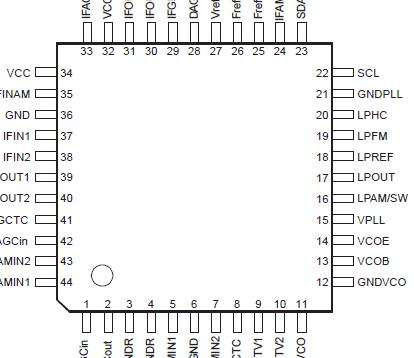

Connection Diagram


Specifications

Symbol Parameter Value Unit
VCCIF Supply voltage for IF-interface 12 V
VPLL PLL supply voltage 12 V
VCCVCO VCO supply voltage 12 V
VCC Supply voltage 12 V
VMIXOUT1/2 Open collector voltage 12 V



Description

The 37990 is a high performance tuner circuit for AM/FM - DSP carradios with 10.7MHz - IF sampling. 37990 contains mixer and IF amplifiers for AM and FM, VCO and PLL synthesizer on a single chip.

Use of BICMOS technology allows the implementation of several tuning functions and a minimum of external components.
