33793

Features: • 4-Channel, 8-Bit Analog-to-Digital Converter (ADC)• 4 Pins Configurable as Analog or Logic Inputs or as Logic Outputs• Provides Regulated +5.0 V Output for Sensor Power from Bus• Additional High-Drive Logic Output• Undervoltage Fault Detection and Signalin...

product image

33793 Picture
See larger image
SeekIC No. : 004228524 Detail

33793: Features: • 4-Channel, 8-Bit Analog-to-Digital Converter (ADC)• 4 Pins Configurable as Analog or Logic Inputs or as Logic Outputs• Provides Regulated +5.0 V Output for Sensor Power...

33793 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
33793
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/20

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 4-Channel, 8-Bit Analog-to-Digital Converter (ADC)
• 4 Pins Configurable as Analog or Logic Inputs or as Logic Outputs
• Provides Regulated +5.0 V Output for Sensor Power from Bus
• Additional High-Drive Logic Output
• Undervoltage Fault Detection and Signaling
• On-Board Clock (No External Elements Required)
• Field-Programmable Address
• Default and Field-Programmable as a DSI Daisy Chain Device
• Recognizes Reverse Initialization for Open Bus Fault Tolerance
• Detects Short to Battery on Bus Switch and Prevents Its Closure


Pinout

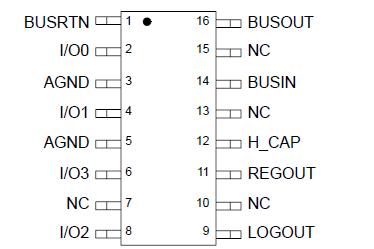

Connection Diagram


Specifications

Rating Symbol Value Unit
I/O Pin Voltage VIO -0.3 to VREGOUT + 0.5 V
I/O Pin Current IIO 5.0 mA
BUSIN, BUSOUT, BUSRTN, and H_CAP Voltage VIN -0.3 to 40 V
BUSIN, BUSOUT, BUSRTN, and H_CAP Current (Continuous) IIN 250 mA
Storage Temperature TSTG -55 to 150 °C
Operating Junction Temperature TJ -40 to 150 °C
Lead Soldering Temperature (Note 1) TSOLDER 260 °C
Thermal Resistance Junction to Case RJC 150 °C/W
ESD Protection
Human Body Model (Note 2)
Machine Model (Note 3)		 VESD1
VESD2		 ±2000
±200		 V
