Product Details

Description



Features:

•  TO257AB HERMETIC PACKAGE FOR HIGH RELIABILITY APPLICATIONS
•SCREENING OPTIONS AVAILBLE
•SIMPLE DRIVE REQUIREMENTS

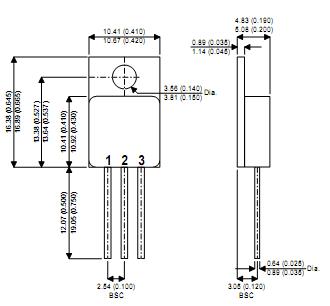

Pinout

Connection Diagram


Specifications

VDS        Drain Source Voltage
VGS        Gate Source Voltage
ID           Continuous Drain Current (TJ= 150°C) TC= 25°C
                                                                            TC= 25°C
IDM         PulsedDrain Current
PD          Power Dissipation                                 TC= 25°C
                                                                           TC= 25°C
TJ, Tstg  Operating Junction and Storage Temperature Range
TL          Lead Temperature (1/16" from case for 10 sec.)


- 100V
±20V
-14A
-8.7A
56A
70W
27W
55 to 150°C
300°C
