2N7002VC-7

MOSFET Dual N-Channel

product image

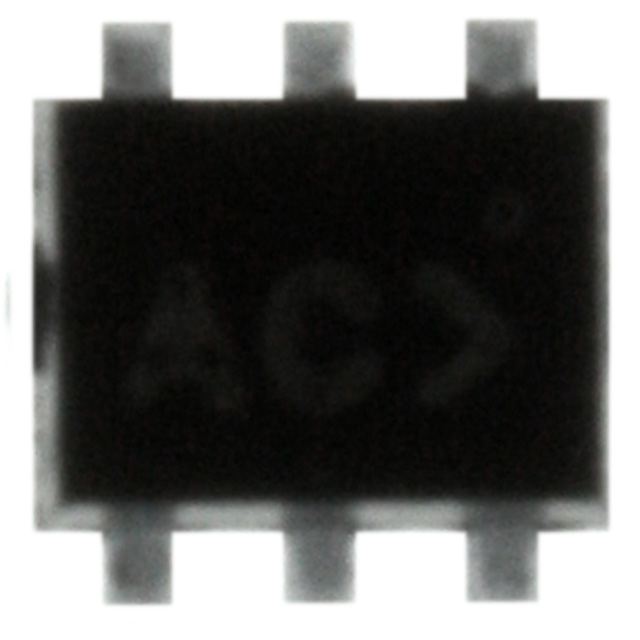

2N7002VC-7 Picture
See larger image
SeekIC No. : 00153732 Detail

2N7002VC-7: MOSFET Dual N-Channel

2N7002VC-7 Data Sheet

floor Price/Ceiling Price

US $ .12~.26 / Piece | Get Latest Price
Part Number:
2N7002VC-7
Mfg:
Diodes Inc.
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~10
  • 10~100
  • 100~250
  • Unit Price
  • $.26
  • $.2
  • $.14
  • $.12
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Transistor Polarity : N-Channel Drain-Source Breakdown Voltage : 60 V
Gate-Source Breakdown Voltage : +/- 20 V Continuous Drain Current : 0.28 A
Resistance Drain-Source RDS (on) : 13500 mOhms Configuration : Dual
Maximum Operating Temperature : + 150 C Mounting Style : SMD/SMT
Package / Case : SOT-563 Packaging : Reel

Description

Transistor Polarity : N-Channel
Gate-Source Breakdown Voltage : +/- 20 V
Mounting Style : SMD/SMT
Packaging : Reel
Maximum Operating Temperature : + 150 C
Configuration : Dual
Drain-Source Breakdown Voltage : 60 V
Package / Case : SOT-563
Continuous Drain Current : 0.28 A
Resistance Drain-Source RDS (on) : 13500 mOhms


Parameters:

Technical/Catalog Information2N7002VC-7
VendorDiodes Inc
CategoryDiscrete Semiconductor Products
Mounting TypeSurface Mount
FET Polarity2 N-Channel (Dual)
Drain to Source Voltage (Vdss)60V
Current - Continuous Drain (Id) @ 25° C280mA
Rds On (Max) @ Id, Vgs7.5 Ohm @ 50mA, 5V
Input Capacitance (Ciss) @ Vds 50pF @ 25V
Power - Max150mW
PackagingTape & Reel (TR)
Gate Charge (Qg) @ Vgs-
Package / CaseSOT-563
FET FeatureStandard
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names 2N7002VC 7
2N7002VC7
