28F640C3(x16)

Features: Flexible SmartVoltage Technology -2.7 V3.6 V Read/Program/Erase -12 V for Fast Production Programming1.65 V2.5 V or 2.7 V3.6 V I/O Option -Reduces Overall System PowerHigh Performance -2.7 V3.6 V: 70 ns Max Access TimeOptimized Architecture for Code Plus Data Storage -Eight 4-Kword Block...

product image

28F640C3(x16) Picture
See larger image
SeekIC No. : 004218242 Detail

28F640C3(x16): Features: Flexible SmartVoltage Technology -2.7 V3.6 V Read/Program/Erase -12 V for Fast Production Programming1.65 V2.5 V or 2.7 V3.6 V I/O Option -Reduces Overall System PowerHigh Performance -2.7...

28F640C3(x16) Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
28F640C3(x16)
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/16

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Flexible SmartVoltage Technology
      -2.7 V3.6 V Read/Program/Erase
      -12 V for Fast Production Programming
1.65 V2.5 V or 2.7 V3.6 V I/O Option
      -Reduces Overall System Power
High Performance
      -2.7 V3.6 V: 70 ns Max Access Time
Optimized Architecture for Code Plus Data Storage
      -Eight 4-Kword Blocks, Top or Bottom Locations
      -Up to One Hundred-Twenty-Seven 32- Kword Blocks
      -Fast Program Suspend Capability
      -Fast Erase Suspend Capability
Flexible Block Locking
      -Lock/Unlock Any Block
      -Full Protection on Power-Up
      -WP# Pin for Hardware Block Protection
      -VPP = GND Option
      -VCC Lockout Voltage
Low Power Consumption
      -9 mA Typical Read Power
      -7 µA Typical Standby Power with Automatic Power Savings Feature
12 V Fast Production Program
Extended Temperature Operation
     -40 °C to +85 °C


Pinout

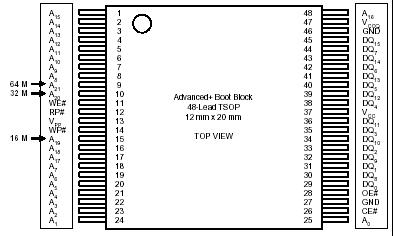

Connection Diagram


Specifications

Parameter Maximum Rating
Extended OperatingTemperature 40 °C to +85 °C
DuringR ead
DuringB lock Erase and Program 40 °C to +85 °C
Temperature under Bias 40 °C to +85 °C
Storage Temperature 65 °C to +125 °C
Voltag e On Any Pin (except VCC and VPP) with Respect to GND 0.5 V to +3.7 V(1)
VPP Voltage (for Block Erase and Program) with Respect to GND 0.5 V to +13.5 V(1,2,3)
VCC and VCCQ Supply Voltage with Respect to GND 0.2 V to +3.6 V
Output Short Circuit Current 100 mA(4)



Description

This section provides an overview of the 3-Volt Advanced+ Boot Block Flash Memory 28F640C3(x16) features, packaging information , signal names and device architecture
