Product Details

Description



Features:

` 16-bit CPU with DSP functions
31.25ns instruction cycle time at 64MHz
max CPU clock
Multiply/accumulate unit (MAC) 16 x 16-bit
multiplication, 40-bit accumulator
Enhanced boolean bit manipulations
Single-cycle context switching support
` On-chip memories
256 Kbyte Flash memory (32-bit fetch)
Single voltage Flash memories with erase/program controller and 100K erasing/programming cycles.
Up to 16 Mbyte linear address space for code and data (5 Mbytes with CAN or I2C)
2 Kbyte internal RAM (IRAM)
18 Kbyte extension RAM (XRAM)
Programmable external bus configuration & characteristics for different address ranges
Five programmable chip-select signals
Hold-acknowledge bus arbitration support
` Interrupt
8-channel peripheral event controller for single cycle interrupt driven data transfer
16-priority-level interrupt system with 56 sources, sampling rate down to 15.6ns
` Timers
Two multi-functional general purpose timer units with 5 timers
`Two 16-channel capture / compare units
`4-channel PWM unit + 4-channel XPWM
`A/D converter
24-channel 10-bit
3s minimum conversion time
` Serial channels
Two synch. / asynch. serial channels
Two high-speed synchronous channels
One I2C standard interface
`2 CAN 2.0B interfaces operating on 1 or 2 CAN busses (64 or 2x32 message, C-CAN version)
` Fail-safe protection
Programmable watchdog timer
Oscillator watchdog
` On-chip bootstrap loader
` Clock generation
On-chip PLL with 4 to 8 MHz oscillator
Direct or prescaled clock input
` Real time clock and 32 kHz on-chip oscillator
` Up to 111 general purpose I/O lines
Individually programmable as input, output or special function
Programmable threshold (hysteresis)
` Idle, power down and stand-by modes
` Single voltage supply: 5V ±10%


Pinout

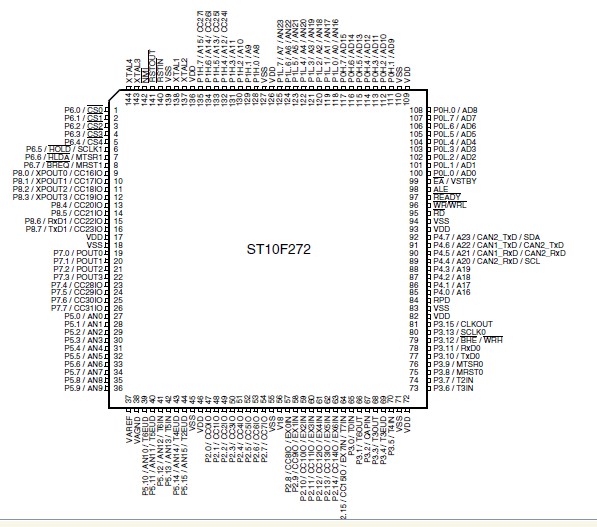

Connection Diagram


Specifications

Symbol
Parameter
Values
Unit
VDD
 Voltage on VDD pins with respect to ground (VSS)
-0.5 to +6.5
V
VSTBY
Voltage on VSTBY pin with respect to ground (VSS)
-0.5 to +6.5
V
VAREF
Voltage on VAREF pins with respect to ground (VSS)
-0.3 to VDD
V
VAGND
Voltage on VAGND pins with respect to ground (VSS)
VSS
V
VIO
 Voltage on any pin with respect to ground (VSS)
-0.5 to VDD + 0.5
V
IOV
 Input current on any pin during overload condition
± 10
mA
ITOV
Absolute sum of all input currents during overload condition
| 75 |
mA
TST
 Storage temperature
-65 to +150
°C
ESD
 ESD Susceptibility (Human Body Model)
2000
V
