Product Details

Description



Features:

` HIGH SPEED: fMAX = 90MHz (TYP.) at VCC = 6V
` LOW POWER DISSIPATION: ICC = 4A(MAX.) at TA=25°C
` HIGH NOISE IMMUNITY: VNIH = VNIL = 28% VCC (MIN.)
` SYMMETRICAL OUTPUT IMPEDANCE: |IOH| = IOL = 6mA (MIN)
` BALANCED PROPAGATION DELAYS: tPLH ≅ tPHL
` WIDE OPERATING VOLTAGE RANGE: VCC (OPR) = 2V to 6V
` PIN AND FUNCTION COMPATIBLE WITH 54 SERIES 374
` SPACE GRADE-1: ESA SCC QUALIFIED
` 50 krad QUALIFIED, 100 krad AVAILABLE ON REQUEST
` NO SEL UNDER HIGH LET HEAVY IONS IRRADIATION
` DEVICE FULLY COMPLIANT WITH SCC-9203-060


Pinout

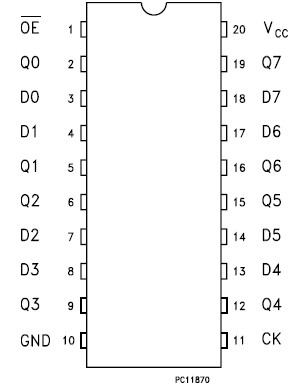

Connection Diagram


Specifications

Symbol
Parameter
Value
Unit
VCC
 Supply Voltage
-0.5 to +7
V
VI
 DC Input Voltage
-0.5 to VCC + 0.5
V
VO
DC Output Voltage
-0.5 to VCC + 0.5
V
IIK
DC Input Diode Current
± 20
mA
IOK
 DC Output Diode Current
± 20
mA
IO
DC Output Current
± 35
mA
ICC or IGND
DC VCC or Ground Current
± 70
mA
PD
Power Dissipation
420
mW
Tstg
Storage Temperature
-65 to +150
°C
TL
Lead Temperature (10 sec)
265
°C



Description

The M54HC374 is an high speed CMOS OCTAL D-TYPE FLIP FLOP WITH 3-STATE OUTPUTS NON INVERTING fabricated with sub-micron silicon gate C2MOS technology.

This M54HC374 is controlled by a clock input (CK) and an output enable input (OE). On the positive transition of the clock, the Q outputs will be set to the logic state that were setup at the D inputs.

While the OE input is at low level, the M54HC374 outputs will be in a normal logic state (high or low logic level) and while OE is high the outputs will be in a high impedance state.

The output control does not affect the internal operation of flip-flops; that is, the old data can be retained or the new data can be entered even while the outputs are off.

All inputs are equipped with protection circuits against static discharge and transient excess voltage.
