Product Details

Description



Features:

• Universal Serial Bus (USB 1.1)
• 64 bytes of USB dual port RAM
• 22 (PIC16C745) or 33 (PIC16C765) I/O pins
- Individual direction control
- 1 high voltage open drain (RA4)
- 8 PORTB pins with:
- Interrupt on change control (RB<7:4> only)
- Weak pull up control
- 3 pins dedicated to USB
• Timer0: 8-bit timer/counter with 8-bit prescaler
• Timer1: 16-bit timer/counter with prescaler can be incremented during sleep via external crystal/clock
• Timer2: 8-bit timer/counter with 8-bit period register, prescaler and postscaler
• 2 Capture, Compare and PWM modules
- Capture is 16 bit, max. resolution is 10.4 ns
- Compare is 16 bit, max. resolution is 167 ns
- PWM maximum resolution is 10 bit
• 8-bit multi-channel Analog-to-Digital converter
• Universal Synchronous Asynchronous Receiver Transmitter (USART/SCI)
• Parallel Slave Port (PSP) 8-bits wide, with external RD, WR and CS controls (PIC16C765 only)


Pinout

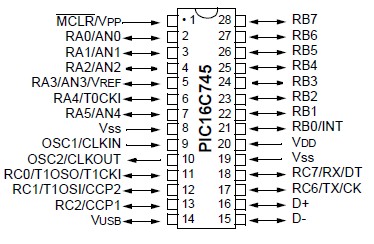

Connection Diagram


Specifications

Ambient temperature under bias.............................................................................................................-55°C to +125°C
Storage temperature .............................................................................................................................. -65°C to +150°C
Voltage on any pin with respect to VSS (except VDD, MCLR and RA4)........................................... -0.3V to (VDD + 0.3V)
Voltage on VDD with respect to VSS ......................................................................................................... -0.3V to +7.5V
Voltage on MCLR with respect to VSS ................................................................................................... -0.3V to +13.25V
Voltage on RA4 with respect to Vss ......................................................................................................... -0.3V to +10.5V
Total power dissipation (Note 1) ...............................................................................................................................1.0W
Maximum current out of VSS pin ...........................................................................................................................300 mA
Maximum current into VDD pin ..............................................................................................................................250 mA
Input clamp current, IIK (VI < 0 or VI > VDD)...................................................................................................................... ±20 mA
Output clamp current, IOK (VO < 0 or VO > VDD) .............................................................................................................. ±20 mA
Maximum output current sunk by any I/O pin..........................................................................................................25 mA
Maximum output current sourced by any I/O pin ....................................................................................................25 mA
Maximum current sunk by PORTA, PORTB, and PORTE (Note 2) (combined) ...................................................200 mA
Maximum current sourced by PORTA, PORTB, and PORTE (Note 2) (combined) ..............................................200 mA
Maximum current sunk by PORTC and PORTD (Note 2) (combined)..................................................................200 mA
Maximum current sourced by PORTC and PORTD (Note 2) (combined).............................................................200 mA
