Product Details

Description



Features:

CMOS COMPATIBLE INPUT
ON STATE OPEN LOAD DETECTION
OFF STATE OPEN LOAD DETECTION
SHORTED LOAD PROTECTION
UNDERVOLTAGE AND OVERVOLTAGE SHUTDOWN
 PROTECTION AGAINST LOSS OF GROUND
VERY LOW STAND-BY CURRENT
REVERSE BATTERY PROTECTION (*)
IN COMPLIANCE WITH THE 2002/95/EC EUROPEAN DIRECTIVE


Pinout

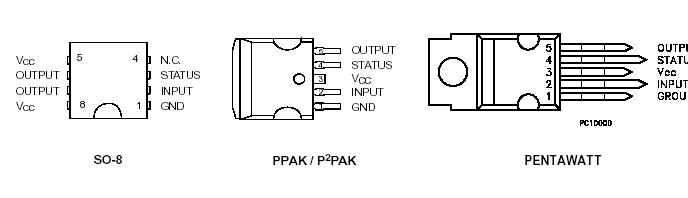

Connection Diagram


Specifications

Parameter
Symbol
Value
Units
PENTAWATT P2PAK P2PAK SO-16L
DC supply voltage (Overvoltage protected)
VCC
45
V
DC ground pin reverse current
TRAN Ground pin reverse current
pulse duration < 1ms)
VC
- 0.3
MA
DC reverse ground pin current
 -IGND
- 200
A
DC output current
IOUT
Internally limited
mA
Reverse DC output current
- IOUT
- 21
mA
DC input current

IIN
+/- 10
mA
DC current sense disable input current
ICSD
-3
+15
V
V
Electrostatic Discharge
(Human Body Model: R=1.5KΩ; C=100pF)
- INPUT
- CURRENT SENSE
- OUTPUT
- VCC
-ICSENSE
4000
2000
5000
5000
V
V
V
V
Maximum Switching Energy
(L=0.25mH; RL=0Ω; Vbat=13.5V; Tjstart=150ºC; IL=45A)
VCSENSE
 100
mJ
Power Dissipation TC25°C
E MAX(1)
  138 138
H
Junction Operating Temperature
VESD
Internally limited
°C
Case operating temperature
VESD
- 40 to 150
°C
Storage temperature
Tj
- 55 to 150
°C



Description

The VN750-E, VN750S-E, VN750PT-E, VN750B5-E are a monolithic device designed in STMicroelectronics VIPower M0-3 Technology, VN750-E, VN750S-E, VN750PT-E, VN750B5-E are intended for driving any kind of load with one side connected to ground. Active VCC pin voltage clamp protects the device against low energy spikes (see ISO7637 transient compatibility table).Active current limitation combined with thermal shutdown and automatic restart protect the device against overload. VN750-E, VN750S-E, VN750PT-E, VN750B5-E detects open load condition both is on and off state. Output shorted to VCC is detected in the off state. Device automatically turns off in case of ground pin disconnection.
