Product Details

Description



Features:

Max supply voltage
V CC
41V
Operating voltage range
VCC
4.5 to 36V
Max On-State resistance (per ch.)
RON
50 mΩ
Current limitation (typ)
ILIMH
19 A
Off state supply current
IS
2 µA(*)



Application

All types of resistive, inductive and capacitive oads

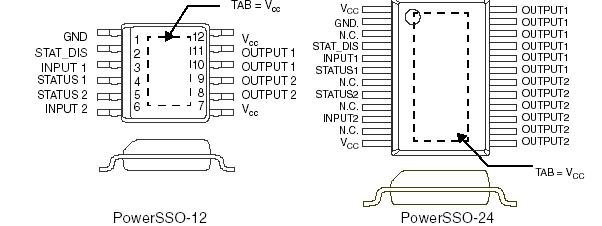

Pinout

Connection Diagram


Specifications

Parameter
Symbol
Value
Units
DC supply voltage
VCC
41
V
Reverse DC supply voltage
VC
0.3
MA
DC reverse ground pin current
 -IGND
200
A
DC output current
IOUT
Internally limited
mA
Reverse DC output current
- IOUT
24
mA
DC input current

IIN
-1 to 10
mA
DC current sense disable input current
ICSD
DC reverse CS pin current
-ICSENSE
200
°C/W
Current sense maximum voltage
VCSENSE
VCC - 41 to +VCC


V
Maximum switching energy (single pulse)
(L = 0.3mH; RL = 0?; Vbat = 13.5V; Tjstart = 150°C;
IOUT = IlimL(Typ.) )
E MAX(1)
109
mJ
Electrostatic Discharge
(Human Body Model: R = 1.5k?; C = 100pF)
- Input
- Current sense
- CS_DIS
- Output
- VCC
VESD
4000
2000
4000
5000
5000
V
V
V
V
V
Charge device model (CDM-AEC-Q100-011)
VESD
750
V
Junction operating temperature
Tj
-40 to 150
°C
Storage temperature
Tstg
-55 to 150
°C



Description

The VND5050K-E and VND5050J-E is a monolithic device made using STMicroelectronics VIPower M0-5 technology. It is intended for driving resistive or inductive loads with one side connected to ground. Active V VCC CC pin voltage clamp protects the device against low energy spikes (see ISO7637 transient compatibility table). VND5050K-E and VND5050J-E detect open load condition both in on and off state, when STAT_DIS is left open or driven low. Output shorted to V VCC CC is detected in the off state.

When STAT_DIS is driven high, STATUS pin is in high impedance state.

Output current limitation protects VND5050K-E and VND5050J-E in overload condition. In case of long overload duration, the device limits the dissipated power to safe level up to thermal shut-down intervention. Thermal shut-down with automatic restart allows the device to recover normal operation as soon as fault condition disappears..
