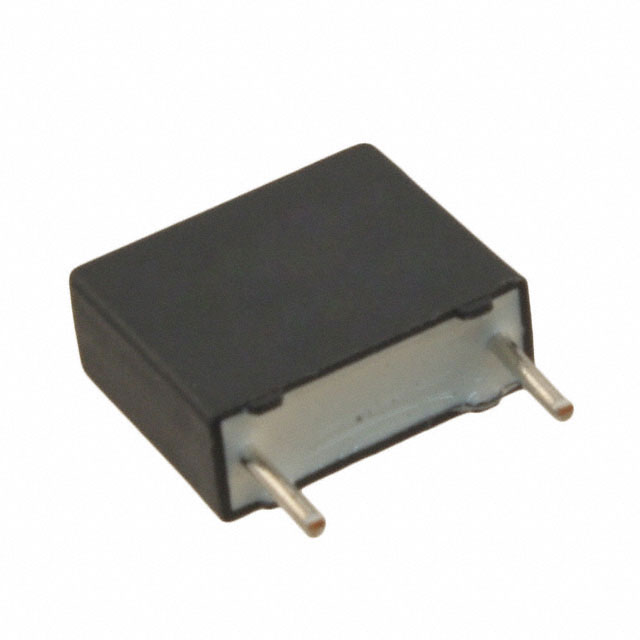

See larger image

SeekIC No. : 002969029 Detail

160153J630D: CAP FILM 0.015UF 630VDC RADIAL

160153J630D Data Sheet

US $ .17~.17 / Piece | Get Latest Price

Part Number:: 160153J630D
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~3000

Unit Price
$.17

Processing time
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

1601 evaluate
US $.17 - .55 / Piece

Power Transformers DUAL DATA BUS ISO
16010 evaluate
US $87.19 - 99.82 / Piece

Analog Panel Meters 3323 0-15 DCV 3.5"
1601000-1 evaluate
US $.02 - .02 / Piece

Terminals 131-001-000=WIRE2- WIRE,STD,SMZ

Product Details

Quick Details

Series:	160	Manufacturer:	Cornell Dubilier Electronics (CDE)
Capacitance:	0.015µF	Voltage Rating - AC:	220V
Voltage Rating - DC:	630V	Dielectric Material:	Polyester, Metallized
Tolerance:	±5%	ESR (Equivalent Series Resistance):	-
Operating Temperature:	-55°C ~ 125°C	Mounting Type:	Through Hole
Package / Case:	Radial	Size / Dimension:	0.512" L x 0.197" W (13.00mm x 5.00mm)
Mounting Style :	Stud	Height - Seated (Max):	0.433" (11.00mm)
Termination:	PC Pins	Lead Spacing:	0.394" (10.00mm)
Features:	General Purpose	Applications:	-

Description

Tolerance: ±5%
ESR (Equivalent Series Resistance): -
Mounting Type: Through Hole
Package / Case: Radial
Termination: PC Pins
Features: General Purpose
Applications: -
Dielectric Material: Polyester, Metallized
Operating Temperature: -55°C ~ 125°C
Capacitance: 0.015µF
Voltage Rating - DC: 630V
Lead Spacing: 0.394" (10.00mm)
Height - Seated (Max): 0.433" (11.00mm)
Packaging: Bulk
Size / Dimension: 0.512" L x 0.197" W (13.00mm x 5.00mm)
Voltage Rating - AC: 220V
Manufacturer: Cornell Dubilier Electronics (CDE)
Series: 160

Parameters:

Technical/Catalog Information	160153J630D
Vendor	Cornell Dubilier Electronics (CDE)
Category	Capacitors
Capacitance	0.015F
Voltage - Rated	630V
Tolerance	±5%
Dielectric Material	Metallized Polyester Film
Package / Case	Radial
Packaging	Bulk
Maximum Temperature	-55°C ~ 125°C
Lead Spacing	0.394" (10.00mm)
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	1000 Hrs @ 85°C
Mounting Type	Through Hole
Features	General Purpose
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	160153J630D 160153J630D
