1601

Power Rating :
Secondary Voltage Rating :
Width :
Primary Voltage Rating : 5 V
Mounting Style : Through Hole
Height : 6.86 mm
Length : 12.9 mm


Features:

Logic Translation
Bi-Directional
Invert / Non-Invert
TTL-CMOS Convert
3V-5V convert
Toroidal construction
Low Profile
Dual or Quad packs
700VDC Isolation

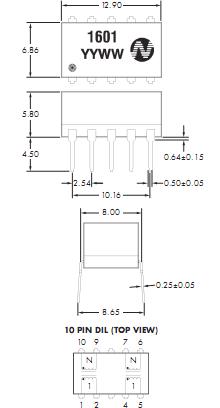

Pinout




Specifications

Operating free air temperature range.................................0°C to 70°C Storage temperature range...........................................-40°C to 125°V Lead Temperature 1.5mm from case for 10 seconds.....................300°C Isolation voltage (flash tested for 1 second)................................700VDC Insulation resistance at 500VDC....................................................>10G


Description

The 1601 are dual or quad isolation transformer packs for use in digital circuits. The 1601 are particularly suited to isolating microprocessor bus connections and performing logic level translation. Being completely passive, power savings are offered over opto-coupled or emitter follower solutions.

Parameters:

Technical/Catalog Information	1601
Vendor	Keystone Electronics
Category	Connectors
Type	Tip Plug
Features	-
Insulation	Non-Insulated
Plug/Mating Plug Diameter	Standard
Mounting Type	Free Hanging (In-Line)
Color	-
Packaging	Bulk
Gender	Male
Termination	Solder
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	1601 1601 1601K ND 1601KND 1601K
