10TTS08S

On-State RMS Current (It RMS) :
Packaging : Tube
Gate Trigger Voltage (Vgt) : 1 V
Rated Repetitive Off-State Voltage VDRM : 800 V
Mounting Style : SMD/SMT
Gate Trigger Current (Igt) : 15 mA
Maximum Gate Peak Inverse Voltage : 10 V
Holding Current (Ih Max) : 30 mA
Off-State Leakage Current @ VDRM IDRM : 0.05 mA
Breakover Current IBO Max : 140 A
Forward Voltage Drop : 1.15 V
Package / Case : D2PAK


Features:

Typical applications are in input rectification (soft start) and these products are designed to be used with International Rectifier input diodes, switches and output rectifiers which are available in identi-cal package outlines.

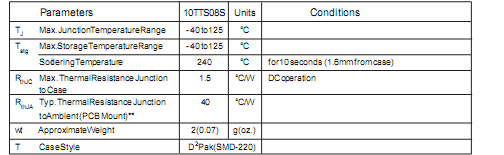

Specifications




Description

The 10TTS08S  SAFEIR series of silicon controlled rectifiers are specifically designed for medium power switching and phase control applications. The glass passivation technology used has reliable operation up to 125!a C junctio temperature.
