10TTS08

SCRs 800 Volt 140 Amp

product image

10TTS08 Picture
SeekIC No. : 00199477 Detail

10TTS08: SCRs 800 Volt 140 Amp

floor Price/Ceiling Price

Part Number:
10TTS08
Mfg:
Vishay Semiconductors
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/7/26

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Breakover Current IBO Max : 140 A Rated Repetitive Off-State Voltage VDRM : 800 V
Off-State Leakage Current @ VDRM IDRM : 0.05 mA Forward Voltage Drop : 1.15 V
Gate Trigger Voltage (Vgt) : 1 V Maximum Gate Peak Inverse Voltage : 10 V
Gate Trigger Current (Igt) : 15 mA Holding Current (Ih Max) : 30 mA
Mounting Style : Through Hole Package / Case : TO-220AC
Packaging : Tube

Description

On-State RMS Current (It RMS) :
Mounting Style : Through Hole
Gate Trigger Current (Igt) : 15 mA
Holding Current (Ih Max) : 30 mA
Packaging : Tube
Maximum Gate Peak Inverse Voltage : 10 V
Rated Repetitive Off-State Voltage VDRM : 800 V
Off-State Leakage Current @ VDRM IDRM : 0.05 mA
Gate Trigger Voltage (Vgt) : 1 V
Package / Case : TO-220AC
Breakover Current IBO Max : 140 A
Forward Voltage Drop : 1.15 V


Application

Typical applications are in input rectification and crow-bar (soft start) and these products are designed to be used with International Rectifier input diodes, switches and output rectifiers which are available in identical package outlines.

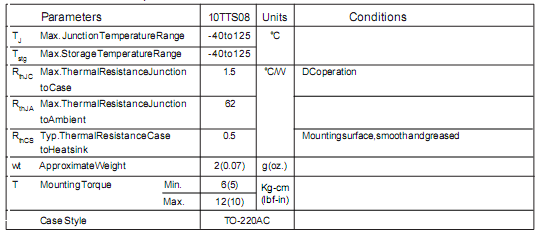

Specifications

  Connection Diagram


Description

The 10TTS08 SAFEIR series of silicon controlled rectifiers are specifically designed for medium power switching and phase control applications. The glass passivation technology used has reli- able operation up to 125!a C junction temperature
