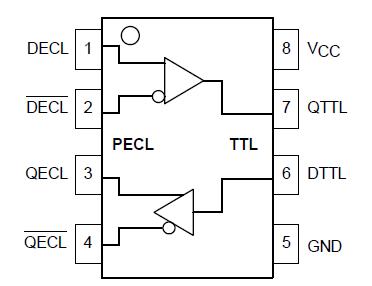

PinoutSpecifications Symbol Parameter Value Unit VCC DC Supply Voltage (Referenced to GND, VCC = 5.2V) 7.0 V TA Operating Temperature Range (In Free-Air) 40 to 85 °C TSTG Storage Temperature Range 55 to +150 °C* Maximum Ratings are those values beyond which damage to the ...
100ELT28: PinoutSpecifications Symbol Parameter Value Unit VCC DC Supply Voltage (Referenced to GND, VCC = 5.2V) 7.0 V TA Operating Temperature Range (In Free-Air) 40 to 85 °C TSTG Sto...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Symbol | Parameter | Value | Unit |
VCC | DC Supply Voltage (Referenced to GND, VCC = 5.2V) | 7.0 | V |
TA | Operating Temperature Range (In Free-Air) | 40 to 85 | °C |
TSTG | Storage Temperature Range | 55 to +150 | °C |
The MC10ELT/100ELT28 is a differential PECL to TTL translator and a TTL to differential PECL translator in a single package. Because PECL (Positive ECL) levels are used only +5V and ground are required. The small outline 8-lead SOIC package and the dual translation design of the ELT28 makes it ideal for applications which are sending and receiving signals across a backplane. Because the mature MOSAIC 1.5 process is used, low cost can be added to the list of features.
The ELT28 is available in both ECL standards: the 10ELT is compatible with positive MECL 10H logic levels while the 100ELT is compatible with positive ECL 100K logic levels.
