Symbol | Parameter | Value | Unit |
VCC | DC Supply Voltage (Referenced to GND, VCC = 5.2V) | 7.0 | V |
VEE | DC Supply Voltage (Referenced to GND, VCC = 5.0V) | 8.0 | V |
VIN | Input Voltage | 40 to VCC | V |
IOUT | Current Applied to Output in Low Output State Continuous Surge |
50 100 |
mA |
TA | Operating Temperature Range (In Free-Air) | 40 to 85 | °C |
TSTG | Storage Temperature Range | 55 to +150 | °C |

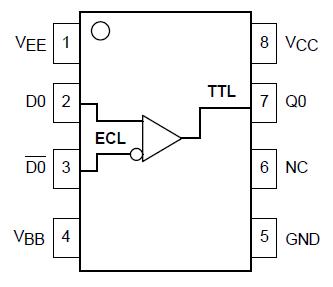

The MC10ELT/100ELT25 is a differential ECL to TTL translator. Because ECL levels are used a +5V, -5.2V (or -4.5V) and ground are required. The small outline 8-lead SOIC package and the single gate of\ the ELT25 makes it ideal for those applications where space, performance and low power are at a premium. Because the mature MOSAIC 1.5 process is used, low cost can be added to the list of features.
The VBB output allows the ELT25 to also be used in a single-ended input mode. In this mode the VBB output is tied to the IN input for a non-inverting buffer or the IN input for an inverting buffer. If used the VBB pin should be bypassed to ground via a 0.01mF capacitor.
The 100ELT25 is available in both ECL standards: the 10ELT is compatible with MECL 10H logic levels while the 100ELT is compatible with ECL 100K logic levels.
