PinoutSpecifications Symbol Parameter Value Unit VCC DC Supply Voltage (Referenced to GND) 7.0 V TA Operating Temperature Range (In Free-Air) 40 to 85 °C TSTG Storage Temperature Range 55 to +150 °CDescriptionThe MC10ELT/100ELT21 is a differential PECL to TTL translator. ...

product image

100ELT21 Picture
SeekIC No. : 004207294 Detail

100ELT21: PinoutSpecifications Symbol Parameter Value Unit VCC DC Supply Voltage (Referenced to GND) 7.0 V TA Operating Temperature Range (In Free-Air) 40 to 85 °C TSTG Storage Tempera...

floor Price/Ceiling Price

Part Number:
100ELT21
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Pinout

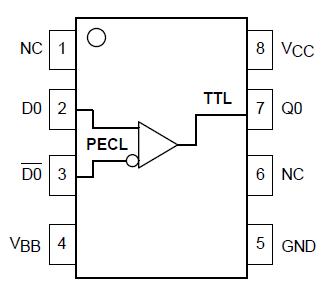

  Connection Diagram


Specifications

Symbol Parameter Value Unit
VCC DC Supply Voltage (Referenced to GND) 7.0 V
TA Operating Temperature Range (In Free-Air) 40 to 85 °C
TSTG Storage Temperature Range 55 to +150 °C



Description

The MC10ELT/100ELT21 is a differential PECL to TTL translator. Because PECL (Positive ECL) levels are used only +5V and ground are required. The small outline 8-lead SOIC package and the single gate of the ELT21 makes it ideal for those applications where space, performance and low power are at a premium. Because the mature MOSAIC 1.5 process is used, low cost can be added to the list of features.

The VBB output allows the ELT21 to also be used in a single-ended input mode. In this mode the VBB output is tied to the IN input for a non-inverting buffer or the IN input for an inverting buffer. If used the VBB pin should be bypassed to ground via a 0.01mF capacitor.

The ELT21 is available in both ECL standards: the 10ELT is compatible with positive MECL 10H logic levels while the 100ELT is compatible with positive ECL 100K logic levels.
