Product Details

Description



Pinout

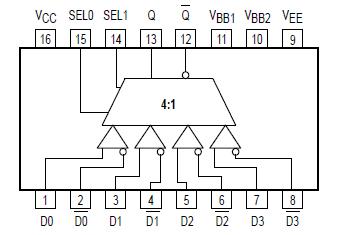

  Connection Diagram


Specifications

Symbol Characteristic Rating Unit
VEE Power Supply (VCC = 0V) 8.0 to 0 VDC
VI Input Voltage (VCC = 0V) 0 to 6.0 VDC
Iout Output Current Continuous
Surge
50
100
mA
TA Operating Temperature Range 40 to +85 °C
VEE Operating Range1,2 5.7 to 4.2 V



Description

The MC10/100EL57 is a fully differential 4:1 multiplexer. By leaving the SEL1 line open (pulled LOW via the input pulldown resistors) the device can also be used as a differential 2:1 multiplexer with SEL0 input selecting between D0 and D1. The fully differential architecture of the EL57 makes it ideal for use in low skew applications such as clock distribution.

The SEL1 is the most significant select line. The binary number applied to the select inputs will select the same numbered data input (i.e., 00 selects D0).

Multiple VBB outputs are provided for single-ended or AC coupled interfaces. In these scenarios, the VBB output of 100EL57 should be connected to the data bar inputs and bypassed via a 0.01mF capacitor to ground. Note that the VBB output can source/sink up to 0.5mA of current without upsetting the voltage level.
