High voltage internal compensation op amp circuit

Published:2011/5/9 10:07:00 Author:Christina | Keyword: High voltage, internal compensation, op amp

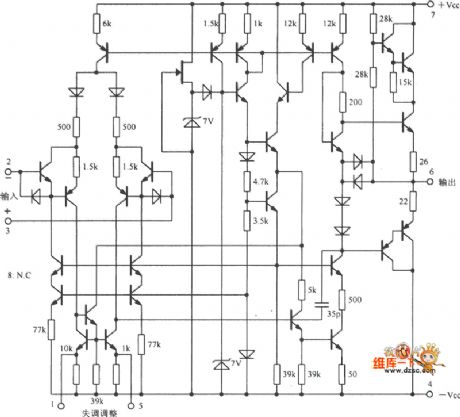

High voltage internal compensation op amp circuit
The High voltage internal compensation op amp circuit is as shown:   (View)

View full Circuit Diagram | Comments | Reading(2771)

CA3080 amplification circuit

Published:2011/5/9 8:04:00 Author:Christina | Keyword: amplification circuit

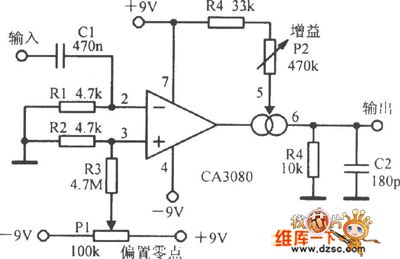

CA3080 amplification circuit
The CA3080 amplification circuit is as shown:   (View)

View full Circuit Diagram | Comments | Reading(1805)

side-channel filter circuit

Published:2011/5/9 7:57:00 Author:Christina | Keyword: side-channel, filter

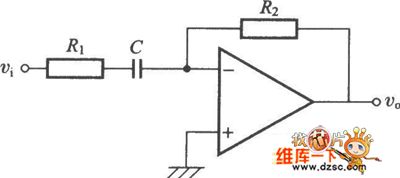

side-channel filter circuit
The side-channel filter circuit is as shown in the figure:   (View)

View full Circuit Diagram | Comments | Reading(410)

Simple Washing Machine Timer Circuit

Published:2011/5/9 19:15:00 Author:Robert | Keyword: Washing Machine, Timer

Simple Washing Machine Timer Circuit
The Simple Washing Machine Timer Circuit is shown below.   (View)

View full Circuit Diagram | Comments | Reading(3718)

Low Power Consumption Window Temperature Detection Circuit

Published:2011/5/9 6:18:00 Author:Robert | Keyword: Low Power Consumption, Window, Temperature Detection

Low Power Consumption Window Temperature Detection Circuit
The Low Power Consumption Window Temperature Detection Circuit is shown below. (a) is using two MAX6509. (b) is using two MAX6510.   (View)

View full Circuit Diagram | Comments | Reading(518)

Intelligent temperature controller MAX6641 circuit diagram

Published:2011/5/10 1:33:00 Author:Nicole | Keyword: temperature controller

Intelligent temperature controller MAX6641 circuit diagram

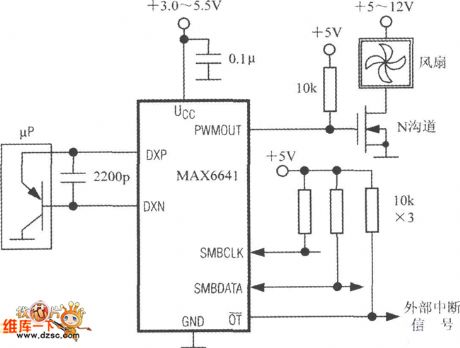

As shown in the figure, it uses PWMOUT terminal to drive N channel MOSFET, then to control the fan speed. remote PN junction temperature sensor can be replaced by the emitter junction of microprocessor (μP) internal temperature measurement triode. It also can adopt discrete component triode such as CMPT3906、T3906、KST3906-TF、SMBT3906 and other models. On the conditions of the highest prospective temperature and 10μA current, it requires the forward voltage drop of triode emitter junction should be higher than 0.25V ; on the conditions of the lowest prospective temperature and 100μA current, it should be lower than 0.95V. It should not use high power triode.   (View)

View full Circuit Diagram | Comments | Reading(545)

Constant temperature controller circuit diagram composed of intelligent temperature sensor LM75

Published:2011/5/9 22:55:00 Author:Nicole | Keyword: Constant temperature controller, intelligent temperature sensor

Constant temperature controller circuit diagram composed of intelligent temperature sensor LM75

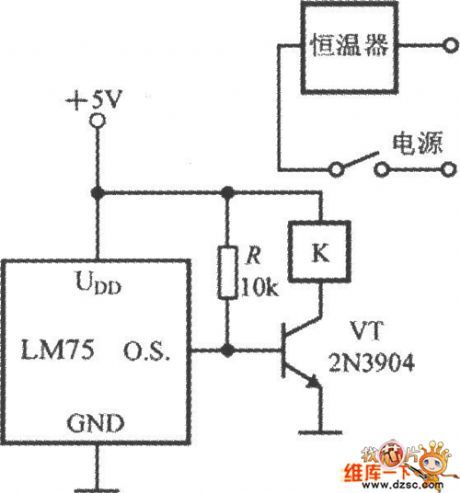

As shown in the figure, it is a simple constant temperature controller circuit which is based on intelligent temperature sensor of IC2 bus interface. LM75 drives relay coil K by 2N3904 transistor, it can control the thermostat power supply's on/off by the high and low of the measured environmental temperature, then it can achieve constant temperature control.   (View)

View full Circuit Diagram | Comments | Reading(1450)

4~20mA temperature transmitter circuit diagram composed of TMP35

Published:2011/5/10 4:02:00 Author:Nicole | Keyword: 4~20mA temperature transmitter

4~20mA temperature transmitter circuit diagram composed of TMP35
4~20mA temperature transmitter circuit diagram composed of TMP35

As shown in the figure, it is a 4~20mA temperature transmitter circuit which is composed of TMP35. This circut can change the voltage singal exported by TMP35 into 4~20mA standard current singal, it is used by automatic instruments to control the industry temperature. 4mA is as zero scale interval, 20mA is as full scale alue. REF193 is 3V reference voltage source, OP193 is operational amplifier, RP1、RP2 are calibration full scale alue and zero point's potentiometer, they can be adjusted independently. VD1 adopts Schottky diode, it can avoid OP193 open-loop voltage rising. The power voltage can be chosen between +9~+18V. The expression formula of transmitter's output current is:   (View)

View full Circuit Diagram | Comments | Reading(6656)

CD4013 feather-touch time delay switch circuit

Published:2011/5/10 1:52:00 Author:chopper | Keyword: feather-touch, time delay switch

CD4013 feather-touch time delay switch circuit
  (View)

View full Circuit Diagram | Comments | Reading(1956)

The structure and circuit diagram of gate control motor

Published:2011/5/9 21:09:00 Author:Nicole | Keyword: gate control, motor, structure

The structure and circuit diagram of gate control motor
  (View)

View full Circuit Diagram | Comments | Reading(429)

5-channel temperature measurement and control system circuit diagram

Published:2011/5/10 2:48:00 Author:Nicole | Keyword: temperature, measurement and control system

5-channel temperature measurement and control system circuit diagram
  (View)

View full Circuit Diagram | Comments | Reading(734)

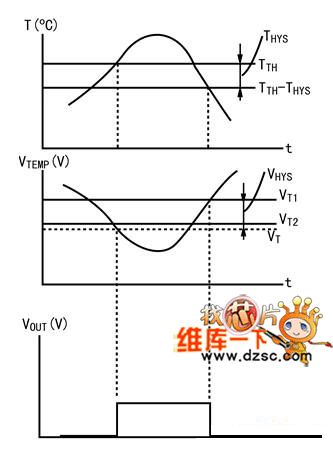

Temperature characteristic and output waveform circuit diagram

Published:2011/5/10 3:14:00 Author:Nicole | Keyword: temperature characteristic, output waveform

Temperature characteristic and output waveform circuit diagram
  (View)

View full Circuit Diagram | Comments | Reading(420)

Constant temperature controller circuit diagram which is composed of AD7416

Published:2011/5/10 3:12:00 Author:Nicole | Keyword: Constant temperature, controller

Constant temperature controller circuit diagram which is composed of AD7416

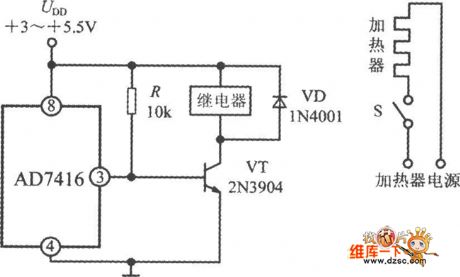

The constant temperature controller circuit which is composed of AD7416 is shown in the figure. AD7416 is set to low level and it works with comparison mode. When the temperature is lower than tHYST, AD7416 outputs high level, VT turns on, relay pulls in, the power supply of heater is turned on; when the temperature is higher than tOT1, VT turns off, relay gives off, the power supply of heater is cut off.   (View)

View full Circuit Diagram | Comments | Reading(504)

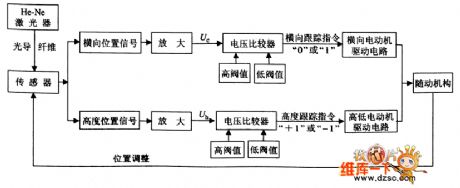

Switch laser upper phase tracking control route circuit diagram

Published:2011/5/10 3:29:00 Author:Nicole | Keyword: switch, laser, upper phase, tracking, control route

Switch laser upper phase tracking control route circuit diagram
  (View)

View full Circuit Diagram | Comments | Reading(504)

SCR drive circuit diagram

Published:2011/5/10 3:27:00 Author:Nicole | Keyword: SCR drive

SCR drive circuit diagram
  (View)

View full Circuit Diagram | Comments | Reading(899)

Transistor high speed switch circuit diagram

Published:2011/5/10 3:48:00 Author:Nicole | Keyword: transistor, high speed switch

Transistor high speed switch circuit diagram
  (View)

View full Circuit Diagram | Comments | Reading(2060)

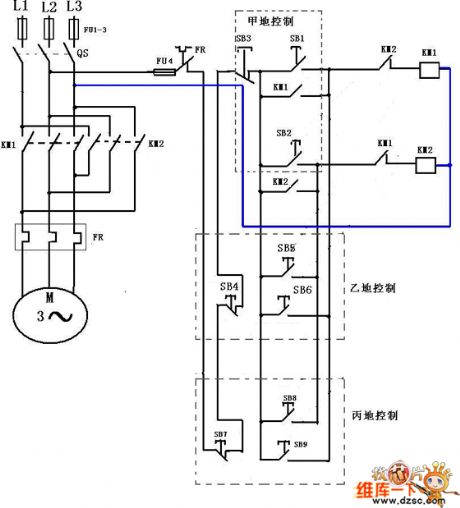

Three address control three phase motor positive inversion circuit diagram

Published:2011/5/9 22:07:00 Author:Nicole | Keyword: three addresscontrol, three phase motor, positive inversion

Three address control three phase motor positive inversion circuit diagram
  (View)

View full Circuit Diagram | Comments | Reading(536)

Bulb line fault display relay circuit diagram

Published:2011/5/9 21:35:00 Author:Nicole | Keyword: bulb line, fault display, relay

Bulb line fault display relay circuit diagram

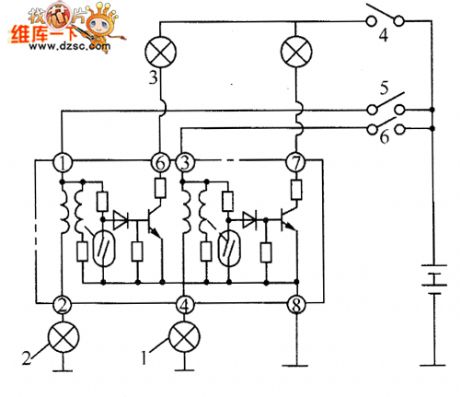

As shown in the figure, the relay is the sensor of detecting brake lamp, tail lamp filament off.   (View)

View full Circuit Diagram | Comments | Reading(445)

CC4052 multi-channel electronic switch integrated circuit diagram

Published:2011/5/9 2:24:00 Author: | Keyword: multi-channel electronic switch

CC4052 multi-channel electronic switch integrated circuit diagram
CC4052 is a multi-channel electronic switch integrated circuits produced by Toshiba.It's widely used in audio, video, communications, car audio equipment and the signal switching switch in the other electronic devices. CC4052 integrated circuits use 16-pin dual in-line package.It is used on changhong CN一15 movement of large screen color TV.The pin functions and data listed in Table 1. Table 1 CAT2404P integrated circuits' pin functions and data   (View)

View full Circuit Diagram | Comments | Reading(813)

Temperature control circuit of the rice cooker

Published:2011/5/9 20:33:00 Author:TaoXi | Keyword: Temperature control, rice cooker


The Temperature control circuit of the rice cooker   (View)

View full Circuit Diagram | Comments | Reading(601)
