Control Circuit

STATION STOP

Published:2013/6/21 3:01:00 Author:muriel | Keyword: STATION STOP

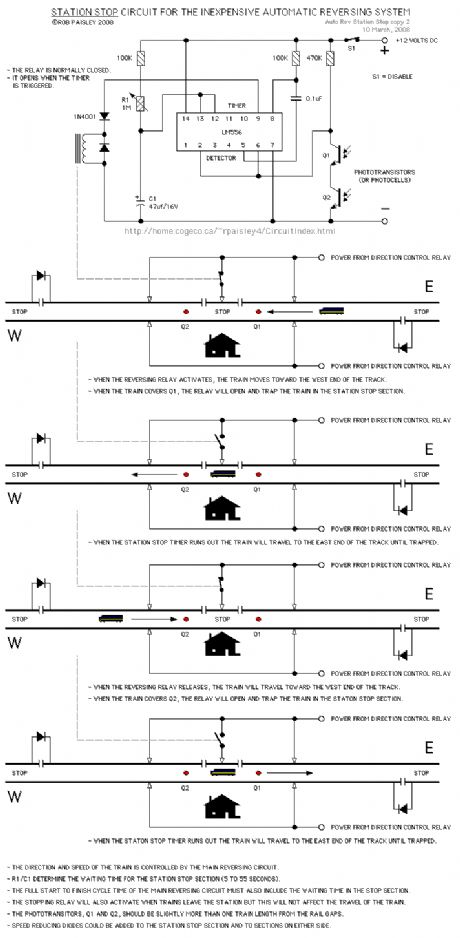

This circuit will stop and start the train at a station located on the reversing track. This circuit is as simple as possible, using the bottom section of a 556 timer as a photodetector and the top section as the delay timer. The timing circuit takes its control and track power from the power supply circuit on this page. NOTE: When using this circuit, there are other things to consider, such as; train length and whether the locomotive has all wheel pickup. These can affect the placement of the gaps and phototransistors.   (View)

View full Circuit Diagram | Comments | Reading(1000)

PSEUDO SPEED CONTROL

Published:2013/6/21 3:00:00 Author:muriel | Keyword: PSEUDO SPEED CONTROL

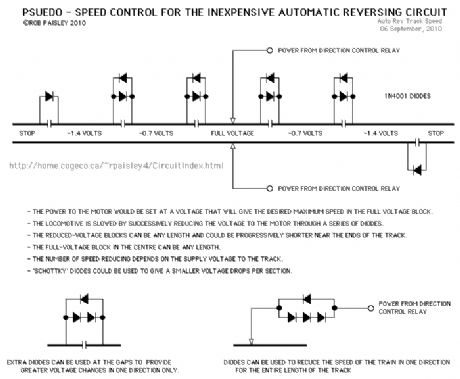

This track circuit uses diodes and gaps to provide a crude form of speed control.   (View)

View full Circuit Diagram | Comments | Reading(761)

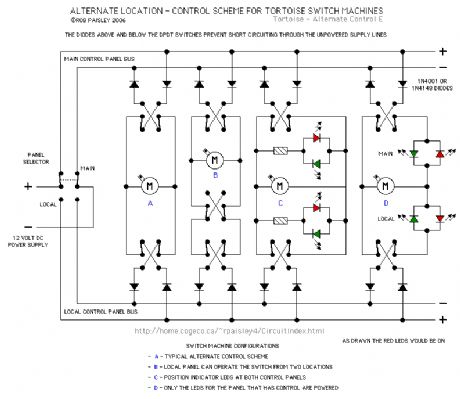

Alternate Location Control

Published:2013/6/21 2:53:00 Author:muriel | Keyword: Alternate Location Control

  (View)

View full Circuit Diagram | Comments | Reading(824)

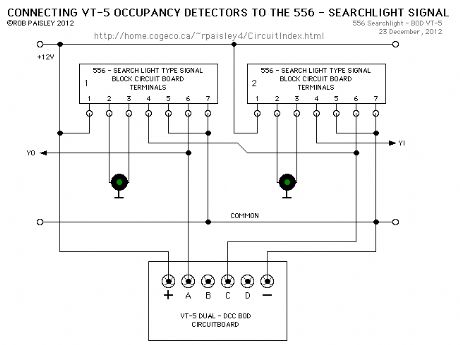

556 - Searchlight Signal Driver

Published:2013/6/21 2:51:00 Author:muriel | Keyword: 556 , Searchlight Signal , Driver

  (View)

View full Circuit Diagram | Comments | Reading(714)

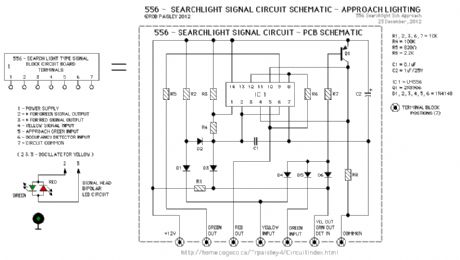

556 - Searchlight Signal Driver Schematic

Published:2013/6/21 2:50:00 Author:muriel | Keyword: 556, Searchlight Signal , Driver Schematic

  (View)

View full Circuit Diagram | Comments | Reading(1054)

PIC 16F628 MiniDCC© Controller Circuit Schematic

Published:2013/6/21 2:46:00 Author:muriel | Keyword: PIC 16F628, MiniDCC© , Controller Circuit Schematic

  (View)

View full Circuit Diagram | Comments | Reading(1248)

PIC 16C84 MiniDCC© Controller Circuit Schematic

Published:2013/6/21 2:46:00 Author:muriel | Keyword: PIC 16C84, MiniDCC©, Controller Circuit Schematic

  (View)

View full Circuit Diagram | Comments | Reading(843)

6 Aspect - Searchlight Signal Driver (LM555)

Published:2013/6/18 21:40:00 Author:muriel | Keyword: 6 Aspect, Searchlight Signal Driver , LM555

The circuit on this page is a 6 Aspect driver for a bicolour LED type Searchlight Signal. The available signal indications are; SOLID - RED, YELLOW, GREEN, and FLASHING - RED, YELLOW and GREEN. The circuit can also turn the signal OFF for approach lighting if desired. As this is a driver circuit, there is no actual input logic to select the signal indication. This will be added when it has been worked out. If you have any ideas on how such a logic system might function might work, please send an email with any details. The first circuit on this page is controlled by four toggle switches. Refer to the tables on the diagram for switch positions and the resulting signal indications.   (View)

View full Circuit Diagram | Comments | Reading(860)

Basic Transistor Switches

Published:2013/6/18 21:03:00 Author:muriel | Keyword: Basic Transistor, Switches

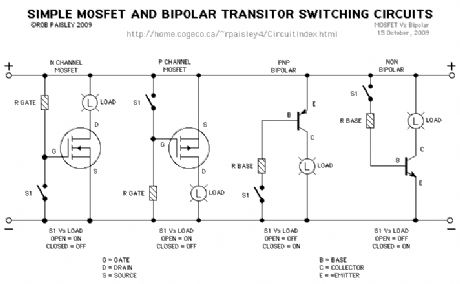

MOSFET and Bipolar transistors are often used for high speed switching applications. Below are four very simple examples of this. ON-OFF toggle switches are used in place of an electronic control circuit.   (View)

View full Circuit Diagram | Comments | Reading(1211)

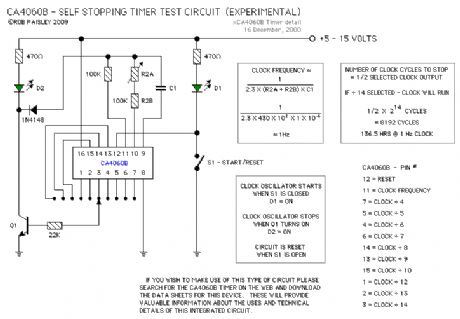

CA4060B Timer Circuits

Published:2013/6/18 20:49:00 Author:muriel | Keyword: CA4060B, Timer Circuits

  (View)

View full Circuit Diagram | Comments | Reading(986)

Push Button Motor Control Circuit - 3

Published:2013/6/18 3:57:00 Author:muriel | Keyword: Push Button Motor, Control Circuit

  (View)

View full Circuit Diagram | Comments | Reading(1493)

Push Button Motor Control Circuit - 2

Published:2013/6/18 3:57:00 Author:muriel | Keyword: Push Button Motor , Control Circuit

  (View)

View full Circuit Diagram | Comments | Reading(1872)

Push Button Motor Control Circuits

Published:2013/6/18 3:56:00 Author:muriel | Keyword: Push Button, Motor, Control Circuits

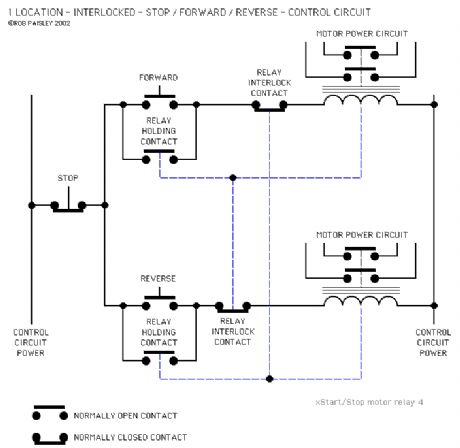

The circuits on this page are for motor controls using Push buttons and would typically be found in commercial and industrial installations. The circuits do not show the wiring of the motors themselves as this depends on the particular motor type. The type of motor also governs the number of contacts needed for the motor side of these circuits. The Relay Holding Contacts and the Interlock Contacts shown in these circuit would normally be built into the motor control relays.   (View)

View full Circuit Diagram | Comments | Reading(2054)

Timed Uncoupling Ramp Driver (LM555)

Published:2013/6/18 3:53:00 Author:muriel | Keyword: Timed Uncoupling Ramp Driver , LM555

  (View)

View full Circuit Diagram | Comments | Reading(956)

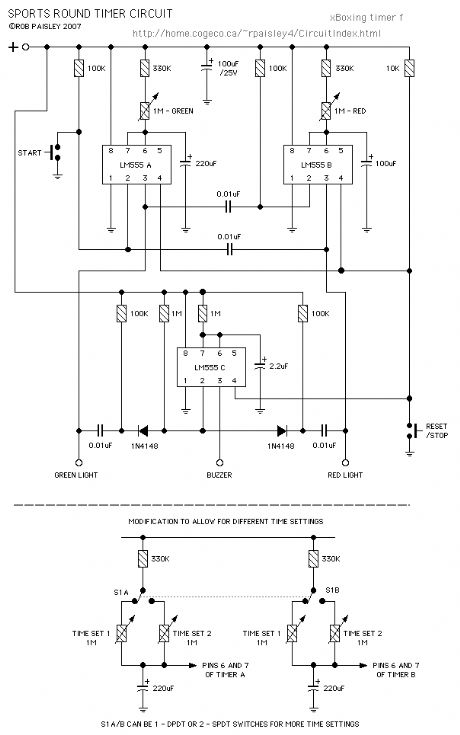

Special Function Timer 4

Published:2013/6/18 3:49:00 Author:muriel | Keyword: Special Function Timer

  (View)

View full Circuit Diagram | Comments | Reading(823)

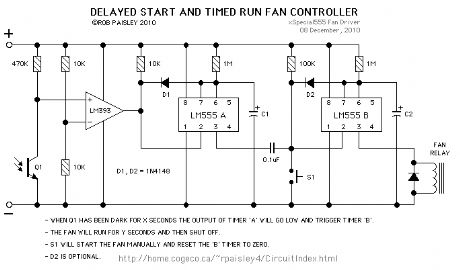

Special Function Timer 3

Published:2013/6/18 3:49:00 Author:muriel | Keyword: Special Function Timer

  (View)

View full Circuit Diagram | Comments | Reading(729)

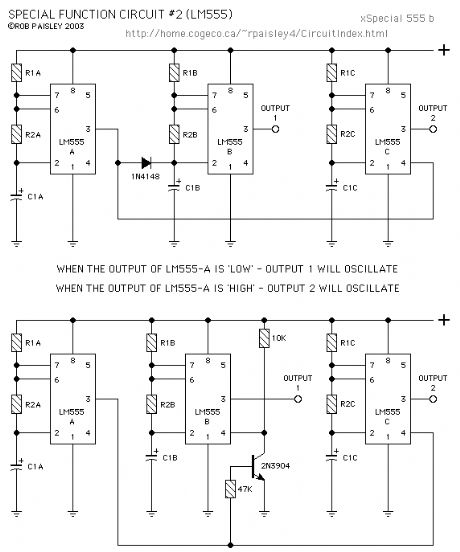

Special Function Timer Circuits (LM555) 2

Published:2013/6/18 3:49:00 Author:muriel | Keyword: Special Function Timer

  (View)

View full Circuit Diagram | Comments | Reading(884)

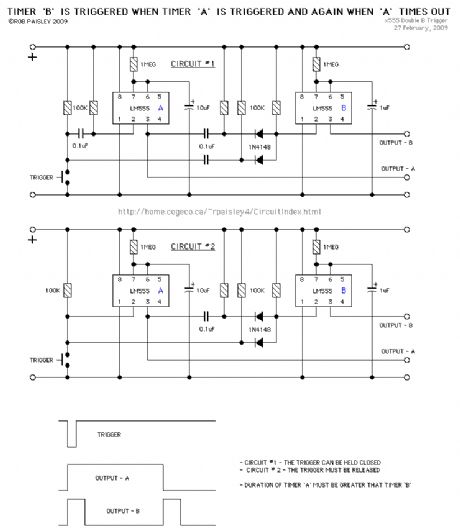

Special Function Timer Circuits (LM555) 1

Published:2013/6/18 3:49:00 Author:muriel | Keyword: Special Function , Timer Circuits, LM555

  (View)

View full Circuit Diagram | Comments | Reading(947)

Special Function Timer Circuits (LM555)

Published:2013/6/18 3:48:00 Author:muriel | Keyword: Special, Function Timer Circuits , LM555

  (View)

View full Circuit Diagram | Comments | Reading(1041)

High Side Current Monitor Specific IC

Published:2013/6/18 3:46:00 Author:muriel | Keyword: High Side , Current Monitor , Specific IC

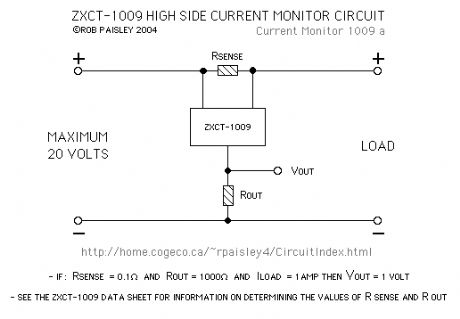

The next circuit uses an integrated circuit that is specifically designed for this application. There are a number of manufactures of these devices and there is also a considerable variety of features that can be had from specific IC's. Due to the internal circuitry of this device, no diodes are required in the supply circuit.   (View)

View full Circuit Diagram | Comments | Reading(1030)
