Position: Home > Circuit Diagram > Control Circuit > Special Function Timer Circuits (LM555)

Control Circuit

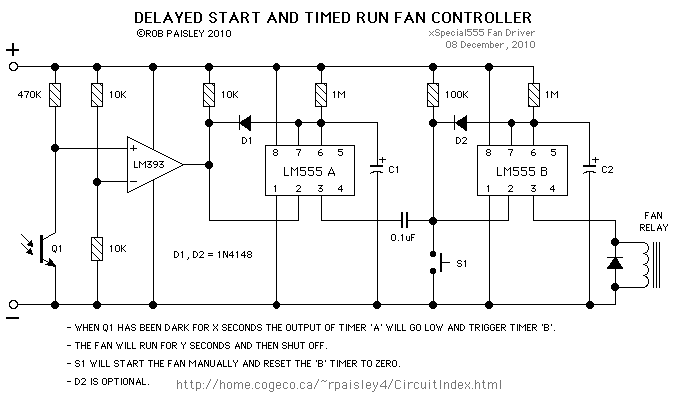

Special Function Timer Circuits (LM555)

Published:2013/6/18 3:48:00 Author:muriel | Keyword: Special, Function Timer Circuits , LM555 | From:SeekIC

Print this Page | Comments | Reading(3)

To evaluate my
Code:
