UPG2012TB, UPG2012TB-A, UPG2012TB-E3

Table of contents:
Info of UPG2012TB
Info of UPG2012TB-A
Info of UPG2012TB-E3

UPG2012TB, UPG2012TB-A, UPG2012TB-E3 Selling Leads, Datasheet

MFG:NEC Category:RF and RFID Package Cooled:SOT363 D/C:09+

UPG2012TB, UPG2012TB-A, UPG2012TB-E3 Datasheet download

Five Points

Part Number: UPG2012TB-A

Category: RF and RFID

MFG: NEC

Package Cooled: SOT363

D/C: 09+

Description: IC SWITCH SPDT 6-SMINI

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

UPG2012TB General Description

NEC's UPG2012TB is a single control GaAs MMIC L-band SPDT (Single Pole Double Throw) switch for mobile phone and L-band applications.

This device can operate from 0.5 to 2.5 GHz, with low insertion loss and high isolation.

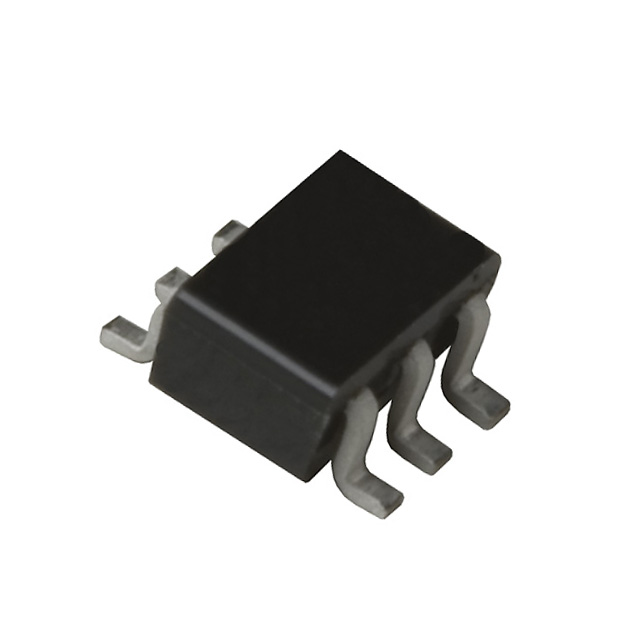

This device is housed in a 6-pin super minimold package, suitable for high-density surface mounting.

UPG2012TB Maximum Ratings

Parameter	Symbol	Ratings	Unit
Supply Voltage	V_DD	6.0	V
Switch Control Voltage	V_cont	+6.0	V
Input Power	P_in	+26	dBm
Power Dissipation	P_D	150^Note	mW
Operating Ambient Temperature	T_A	−45 to +85	°C
Storage Temperature	T_stg	−55 to +150	°C

Note Mounted on double-sided copper-clad 50 × 50 × 1.6 mm epoxy glass PWB, T_A = +85°C

UPG2012TB Features

· SUPPLY VOLTAGE:
    V_DD= 2.7 to 3.0 V (2.8 V TYP.)
· SWITCH CONTROL VOLTAGE:
    V_{cont (H)} = 2.7 to 3.0 V (2.8 V TYP.)
    V_{cont (L)} = −0.2 to +0.2 V (0 V TYP.)
· LOW INSERTION LOSS:
   L_INS1 = 0.27 dB TYP. @ f = 0.5 to 1.0 GHz, V_DD = 2.8 V, V_cont= 2.8 V/0 V
   L_INS2 = 0.30 dB TYP. @ f = 2.0 GHz, V_DD = 2.8 V, V_cont = 2.8 V/0 V
   L_INS3= 0.35 dB TYP. @ f = 2.5 GHz, V_DD= 2.8 V, V_cont= 2.8 V/0 V
   (Reference value)
· HIGH ISOLATION:
   I_SL1 = = 28 dB TYP. @ f = 0.5 to 2.0 GHz, V_DD = 2.8 V, V_cont = 2.8 V/0 V
   I_SL2 = 25 dB TYP. @ f = 2.5 GHz, V_DD= 2.8 V, V_cont = 2.8 V/0 V
   (Reference value)
· HIGH-DENSITY SURFACE MOUNTING:
   6-pin super minimold package (2.0 × 1.25 × 0.9 mm)

UPG2012TB Typical Application

· L-band digital cellular or cordless handsets
· PCS, W-LAN, WLL and BluetoothTM
· Short Range Wireless

UPG2012TB Connection Diagram

UPG2012TB-A Parameters

Technical/Catalog Information	UPG2012TB-A
Vendor	NEC
Category	RF and RFID
RF Type	802.15.1/Bluetooth, Cellular, PCS, WLAN, WLL
Package / Case	SOT-363, 6-Super Mini-Mold
Frequency	500MHz ~ 2.5GHz
Features	SPDT
Packaging	Bulk
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	UPG2012TB A UPG2012TBA
