TDA5102R, TDA5103A, TDA5114D

Table of contents:
Info of TDA5102R
Info of TDA5103A
Info of TDA5114D

TDA5102R, TDA5103A, TDA5114D Selling Leads, Datasheet

MFG:Infineon Technologies Category:RF and RFID Package Cooled:TSSOP D/C:08+

TDA5102R, TDA5103A, TDA5114D Datasheet download

Five Points

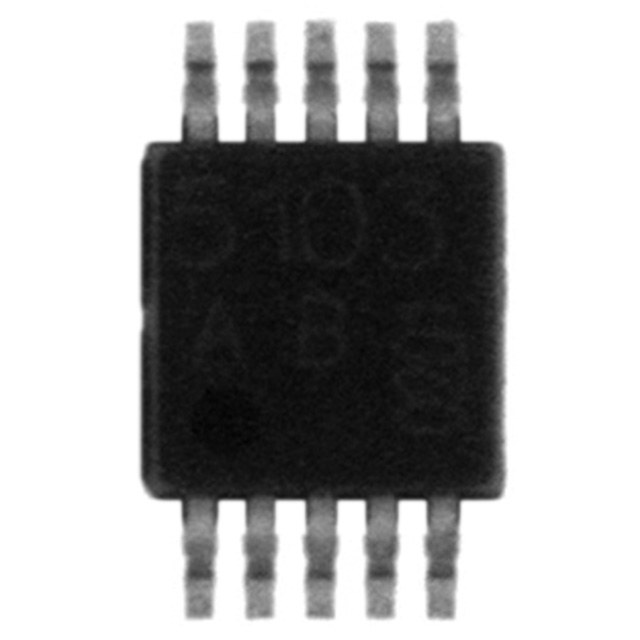

Part Number: TDA5103A

Category: RF and RFID

MFG: Infineon Technologies

Package Cooled: TSSOP

D/C: 08+

Description: TRANSMITTER ASK/FSK P-TSSOP-10

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

TDA5103A Parameters

Technical/Catalog Information	TDA5103A
Vendor	Infineon Technologies
Category	RF and RFID
Features	-
Package / Case	10-TSSOP
Packaging	Tape & Reel (TR)
Applications	Alarm Systems, Communication Systems
Data Rate - Maximum	20 kbps
Frequency	345MHz
Modulation or Protocol	ASK, FSK
Current - Transmitting	7mA
Operating Temperature	-25°C ~ 85°C
Power - Output	5dBm
Voltage - Supply	2.1 V ~ 4 V
Memory Size	-
Data Interface	PCB, Surface Mount
Antenna Connector	PCB, Surface Mount
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	TDA5103A TDA5103A TDA5103AINTR ND TDA5103AINTRND TDA5103AINTR

TDA5103A General Description

The TDA 5103A is a single chip ASK transmitter for the frequency band 344- 347 MHz. The IC offers a high level of integration and needs only a few external components. The device contains a fully integrated PLL synthesizer and a high efficiency power amplifier to drive a loop antenna. A special circuit design and an unique power amplifier design are used to save current consumption and therefore to save battery life. Additional features like a power down mode, a low power detect and a divided clock output are implemented.

TDA5103A Maximum Ratings

Parameter	Symbol	Limit Values		Unit	Remarks
Parameter	Symbol	Min	Max	Unit	Remarks
Junction Temperature	T_J	-40	150
Storage Temperature	T_s	-40	125
Thermal Resistance	R_thJA		220	K/W
ESD integrity, all pins	V_ESD	-1	+1	kV	100pF, 1500

TDA5103A Features

·fully integrated frequency synthesizer
·VCO without external components
·high efficiency power amplifier
·frequency range 344-347 MHz
·ASK modulation
·low supply current (typically 7 mA)
·voltage supply range 2.1 - 4 V
·power down mode
·low voltage sensor
·clock output for µC
·low external component count

TDA5103A Typical Application

·Keyless entry systems
·Remote control systems
·Alarm systems
·Communication systems

TDA5103A Connection Diagram
